TS55-L12NQR
Product Specification
Contact Rating：50mA，12V DC
Contact Resistance：100 mQ Max.
Insulation Resistance：100MΩ Min.500VDC
Dielectric Strength：250V AC/1minute
Operating Force：160±50gF/250±50gF
Travel：0.25mm
Operating Life：1,000,000 cycles For 160gf,100,000
cycles for 250gF
Operating Temp.：-40°C~+85°C
Application
Audio / Visual 音响/视听设备
Computer Peripherals 电脑外设
Consumer Electronics 消费类电子
Instrumentation 仪器仪表
Telecommunication 电信，通信设备
Medical Equipmen 医疗设备

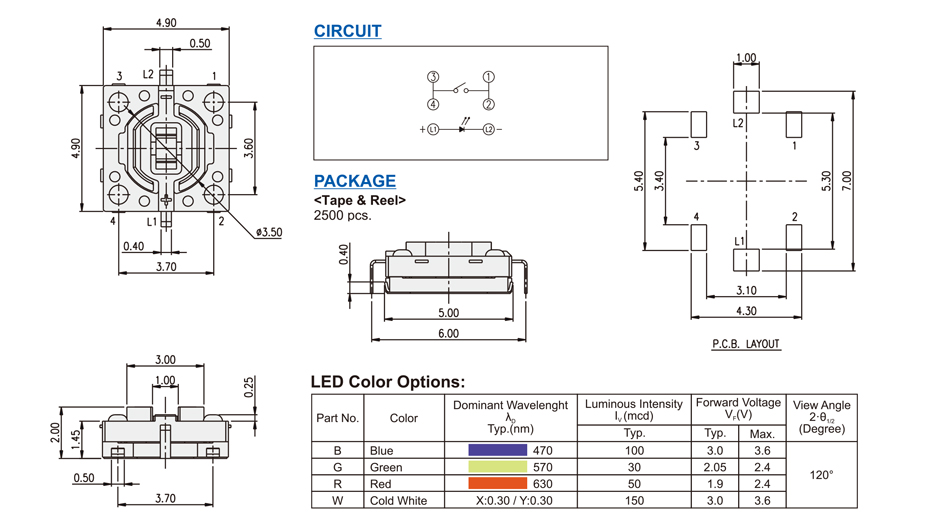

Drawing

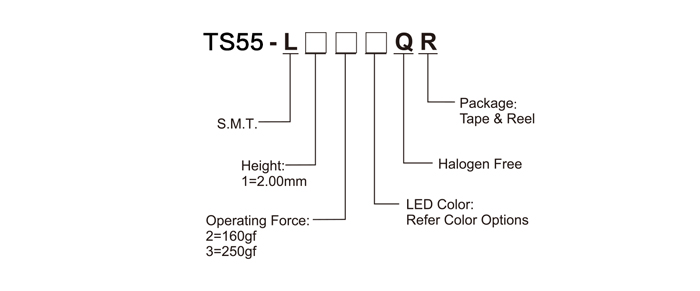

Order Coding Diagram
