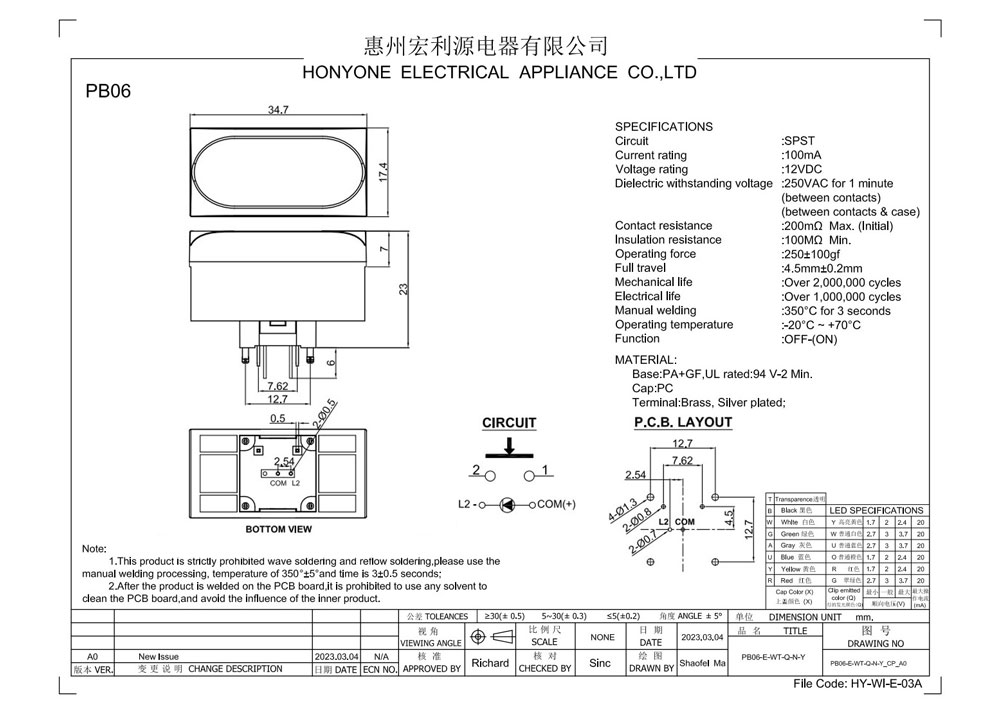

产品规格：
Circuit :SPST
Current rating :100mA
Voltage rating :12VDC
Dielectric withstanding voltage:250vAC for 1 minute
Contact resistance :200mΩ Max.(Initial)
Insulation resistance :100MΩ Min.
Operating force :250±100gf
Full travel :4.5mm±0.2mm
Mechanical life :Over 2,000,000 cycles
Electrical life :Over 1,000,000 cycles
Manual welding :350°C for 3 seconds
Operating temperature :-20°C~+70°℃
Function :OFF-(ON)
应用领域：
Video processor 视频处理器
Security Monitoring Equipment
安防监控设备
Teaching recording and broadcasting equipment
教学录播设备
Consumer Electronics 消费类电子
Audio equipment 音响设备
