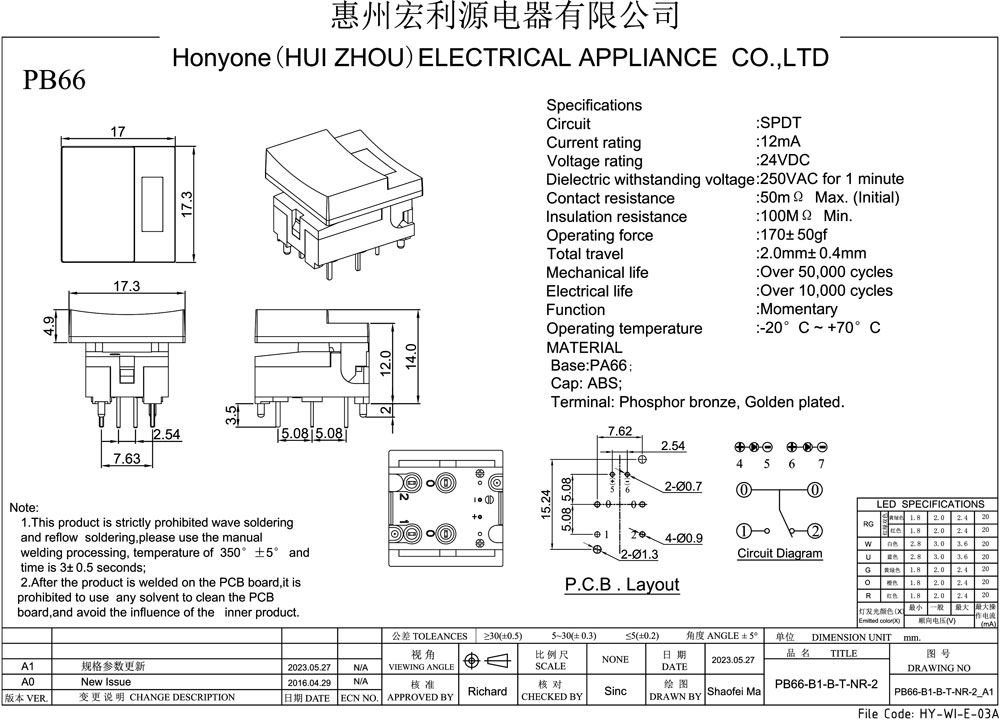

产品规格:
Circuit :SPDT
Current Rating :12mA
Voltage Rating :24VDC
Contact Resistance :50mΩ Max.(intial)
Insulation Resistance :100MΩ Min.
Operating Force :170±50gf
Total Travel :2.0±0.4mm
Opearating life :50,000 Cycles Min
Soldear Specifications:350°C for 3 Seconds
Function :Momentary
Openrating Temperature:-20°C~ +70°C
