产品规格:

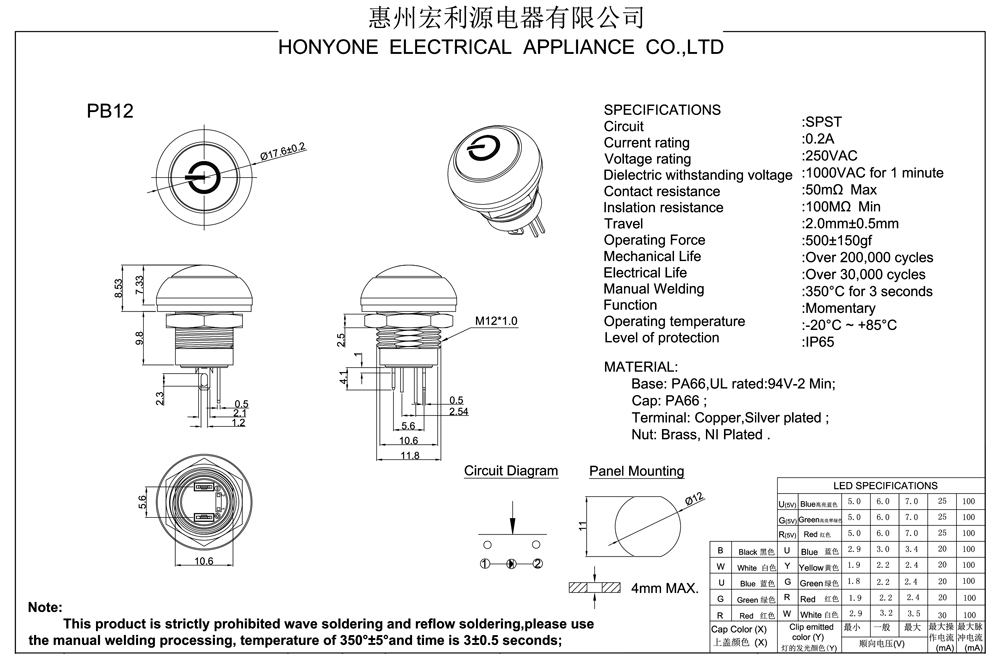

SPECIFICATIONS
Circuit :SPST
Current rating :0.2A
Voltage rating :250VAC
Dieletric withstanding voltage:1000VAC for 1 minute
Contact resistance :50mΩ Max
Inslation resistance :100MΩ Min
Travel :2.0mm±0.5mm
Operating Force :500±150gf
Mechanical Life :Over 200,000 cycles
Electrical Life :Over 30,000 cycles
Manual Welding :350°C for 3 seconds
Function :Momentary
Operating temperature : -20°C~+85°C
Level of protection :IP67
应用领域:
APPLICATIONS
• Communications 通信设备
• Data entry 数据录入设备
• Hand-held control modules 人工控制手柄
• Outdoor controls 户外电子设备
• Mass transport controls 公共交通车辆控制
• Instrumentation 仪器仪表
