产品型号:ES-4-T1CR
ES-4-T1CR
产品规格:
Contact Rating: R- 0.4 VA max @ 20 V AC or DC
Electrical Life: 30,000 make and break cycles at full load
Contact Resistance: 20 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
ESD Resistant Option: P2 insulating actuator
only: 9,000 VDC min. @ sea level,actuator to terminals.
Degree of Protection: IP67
Operating Temperature: -30°C to 85°C
Configuration: SPDT,DPDT
Function: On-On,On-Mom,On-Off-On,Mom-Off-Mom,
On-Off-Mom,On-On-On
应用领域:
取暖器 heater
电风扇 Electric fan
监控摄像头 Surveillance camera
冰箱 refrigerator
空调air conditioning
转向射灯 to shoot the light
洗衣机 washing machine
饮水机等家用电器 water dispenser
其他机械设备Other mechanical equipment

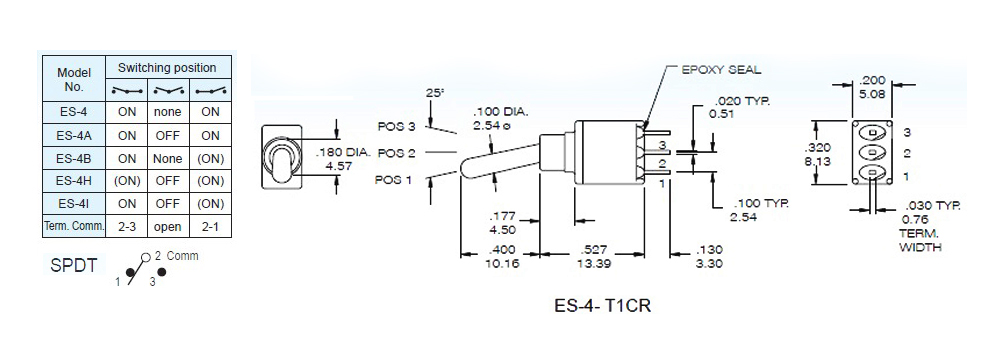

产品图纸

产品的订购编码图
