产品型号:PA16-13-RBA-W2-20
PA16-13-RBA-W2-20
产品规格:
Front panel sealing :
IP65 and IP67 acc. to IEC 60529
Salt spray : IEC 512-6, test 11f
Operating temperature : -20 °C to +65 °C  (-4 °F to +149 °F)
Max. current/voltage rating with resistive load : 2 A 24 VDC
Initial contact resistance : 100 mΩ max.
Insulation resistance : 100 MΩ min. at 500 VDC
Dielectric strength : 500 Vrms
Electrical life at full load : 1,000,000 cycles
应用领域:
汽车 Automotive
工业遥控器,工业电子
industrial remote control, Industrial electronics
电脑网络设备
Computers network equipment
检测仪器/设备、电视系统
Test & Measurement equipment, TV system

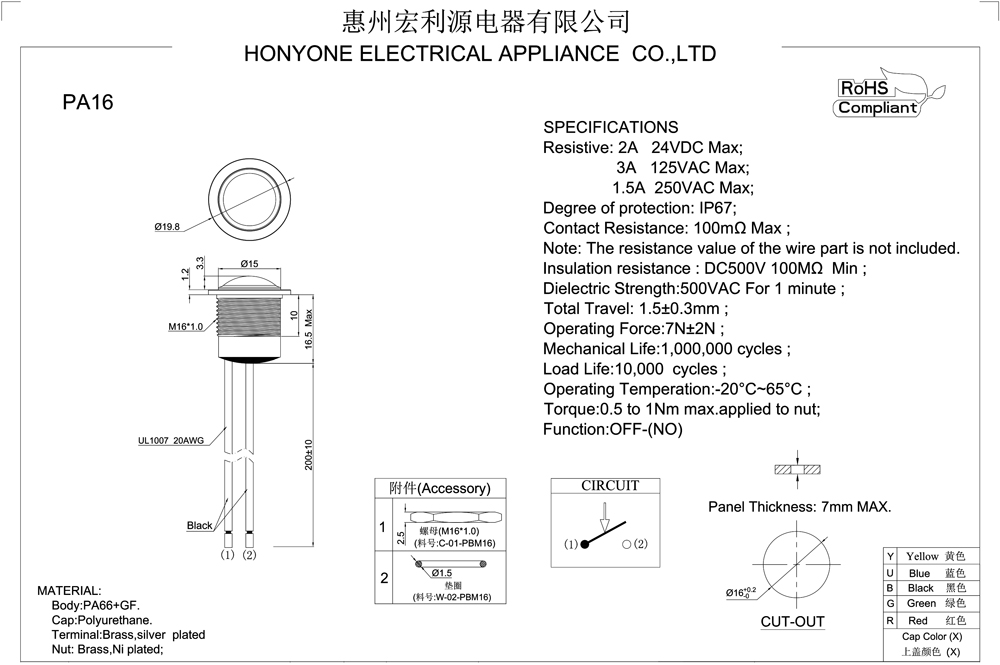

产品图纸

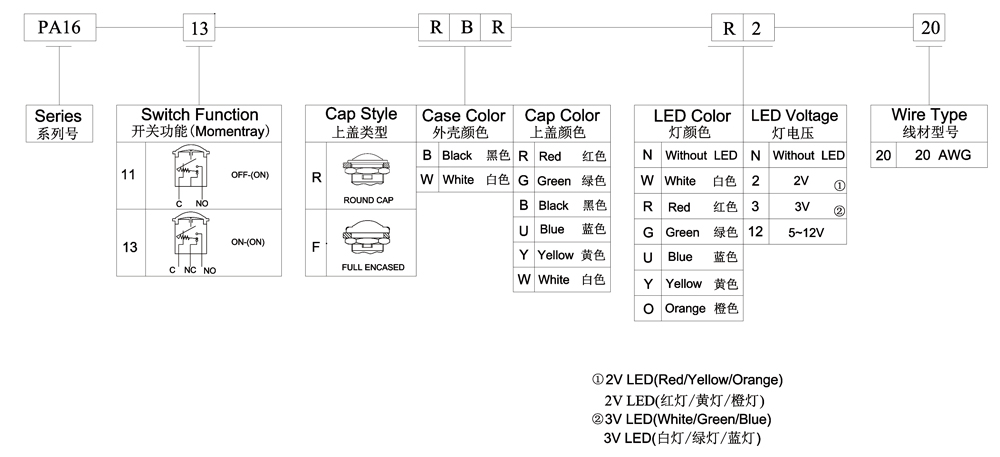

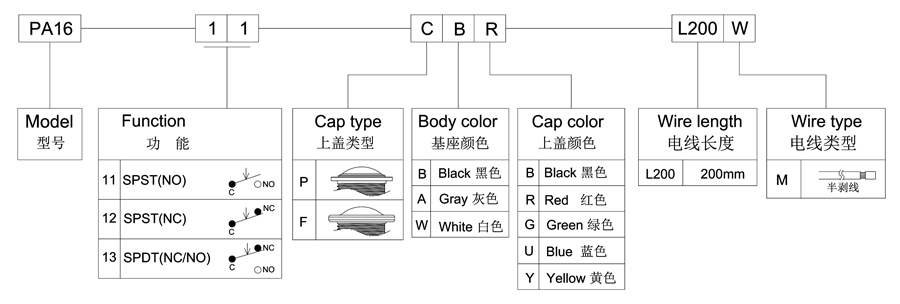

产品的订购编码图
