PRODUCT MODEL:PB66-B1-B-T-NG-2
PB66-B1-B-T-NG-2
PRODUCT SPECIFICATION:
Circuit                           :SPDT
Current Rating               :12mA
Voltage Rating               :24VDC
Contact Resistance         :50mΩ Max.(intial)
Insulation Resistance      :100MΩ Min.
Operating Force             :170±50gf
Total Travel                   :2.0±0.4mm
Opearating life               :50,000 Cycles Min
Soldear Specifications     :350°C for 3 Seconds
Function                       :Momentary
Openrating Temperature:-20°C~ +70°C
Application:
Stage Lighting control equipment
舞台灯光控制设备
Video processor            视频处理器
Matrix Controller            矩阵控制器
Security equipment       安防设备
Cashier Equipment         收银设备

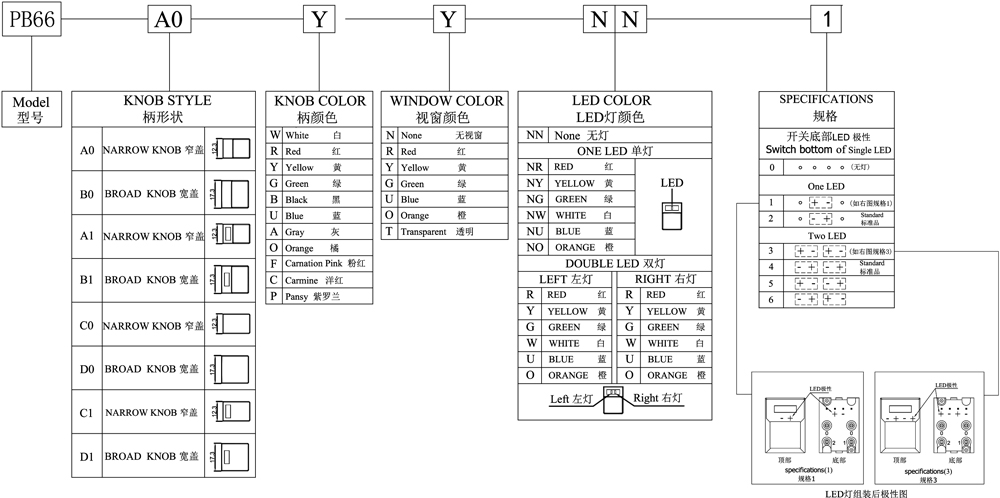

ORDER CODING DIAGRAM
