PRODUCT MODEL:PB86-A1-P-R
PB86-A1-P-R
PRODUCT SPECIFICATION:
Circuit                        :SPDT
Current Rating             :12mA
Voltage Rating             :24VDC
Contact Resistance       :50mΩ Max .(intial)
Insulation Resistance    :100MΩ Min.
Operating Force            :170±50gf
Total Travel                  :2.0±0.4mm.
Opearating Force          :50,000 Cycles Min
Soldear Specifications    :256°C for 5 Seconds
Function                      :Momentray
Openrating Temperature:-20°C~+ 70°C
Application:
Stage Lighting control equipment
舞台灯光控制设备
Video processor            视频处理器
Matrix Controller            矩阵控制器
Security equipment       安防设备
Cashier Equipment         收银设备

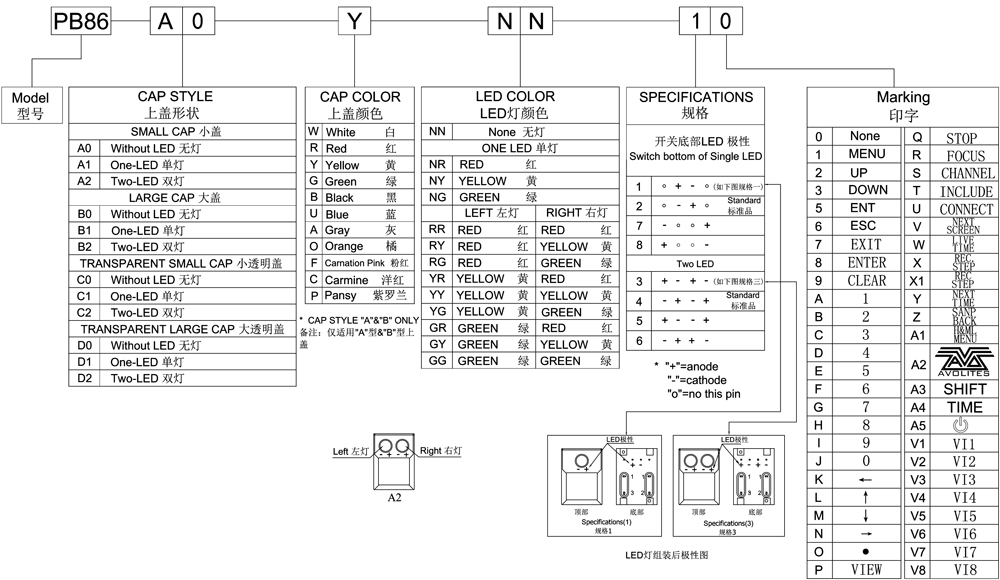

ORDER CODING DIAGRAM
