PRODUCT MODEL:PB21-U
PB21-U
PRODUCT SPECIFICATION:
POWER MIN/MAX: 0.02VA / 1.0VA
VOLTAGE MIN/MAX: 20mVdc – 32 Vdc
CURRENT MIN/MAX: 0.1mA – 100mA
CONTACT RESISTANCE: <150m Ω
INSULATION RESISTANCE: >1G Ω initial, >10M Ω after damp heat
BOUNCE TIME: <5ms
OPERATING TEMPERATURE: -40˚C to 85˚C
RELATIVE HUMIDITY: 90 to 96% according to NF EN 60068-2-30
PROTECTION: dust protection and flux tight
OVERLOAD: 40N min
Application:
Typical Applications
• When backlighting and switch are
required to be a “2 in 1” component
• The dome contact secures a superior
contact reliability in time
• The ergonomics of K5V provides a
long travel, a sharp tactile feel and
an audible click
• Server, storage, automotive, network
infrastructure, medical

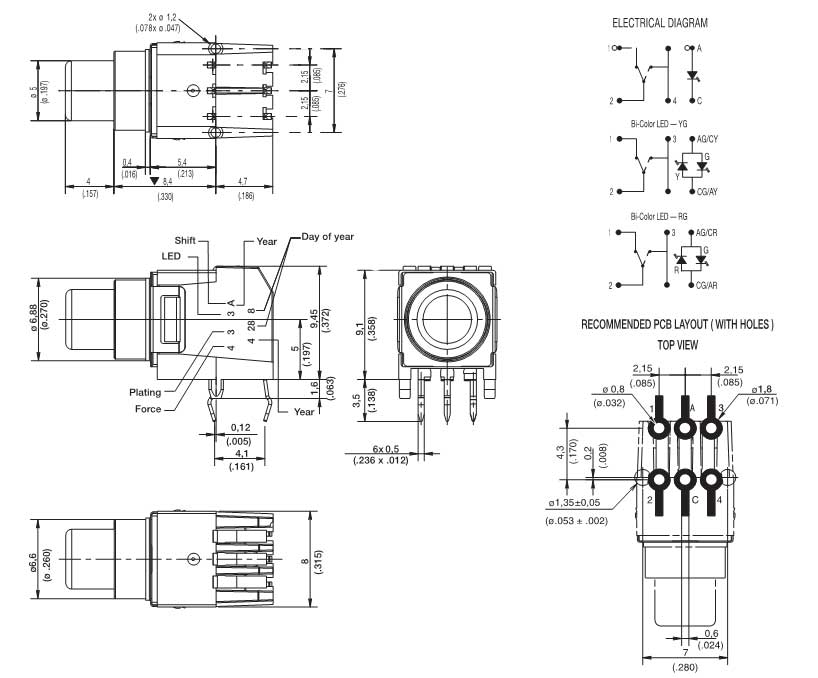

ORDER CODING DIAGRAM
