PRODUCT MODEL:K12A-RD-N-1
K12A-RD-N-1
PRODUCT SPECIFICATION:
FUNCTION: momentary
SWITCHING TRAVEL: 0,6 mm*
OPERATING FORCE: 1.5 N OD without snap-point as detector switch.
PROTECTION CLASS:  IP 67/IP40 (dust tight, protected against)
SWITCHING VOLTAGE MIN./MAX.: 2 V DC / 30 V DC
SWITCHING CURRENT MIN./MAX.: 10 mA /100 mA
CONTACT RESISTANCE: Initial ≤ 50 mΩ
OPERATING TEMPERATURE: -40˚C to 85˚C.
SOLDERABILITY:
Wave soldering, compatible with lead free soldering profile
Hand soldering, 350˚C
Application:
Typical Applications
•  Automotive
•  Off-road transportation
•  Industrial electronics
•  Computers & network equipment
•  Joysticks

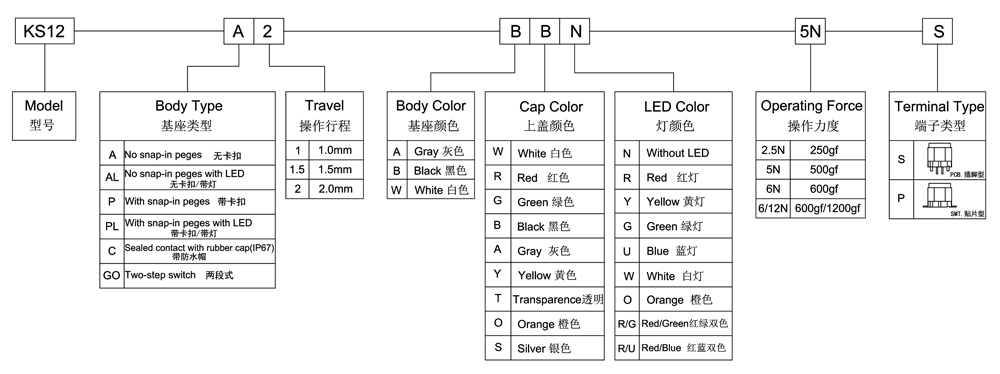

ORDER CODING DIAGRAM
