PRODUCT MODEL:PBM10-13M-H-NNN-B1 防水IP67
PBM10-13M-H-NNN-B1 防水IP67
PRODUCT SPECIFICATION:
Rating:3A 125VAC
:1.5A 250VAC
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100MΩ Min.
Dielectric Strength:AC 1000V 1 minute
Electrial Life:100,000 cycles
Openrating Temperature:-40℃~85℃
Protection degree
IP 67 (sealed 10 mm dia. version only)
IP 65 with protective cap
function:ON-(ON) 1-C-2
Application:
Recommended 产品特点与应用
The switches can be IP65 with fitted silicone cap
or IP 67 with fitted silicone cap.
产品可以做到IP65/IP67防水等级
panel mounting holeof 10 mm dia.
产品面板开孔尺寸仅为10mm.
outdoor applications, 户外设备
military and avionics equipment,军工与安防
telecommunications, 通信设备
medical equipment, 医疗设备
power supplies.电源供应器

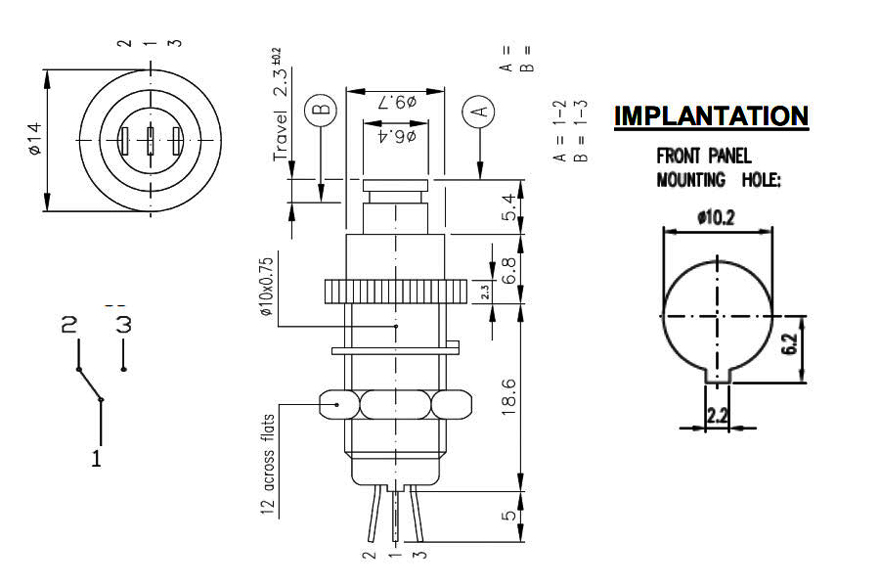

DRAWING

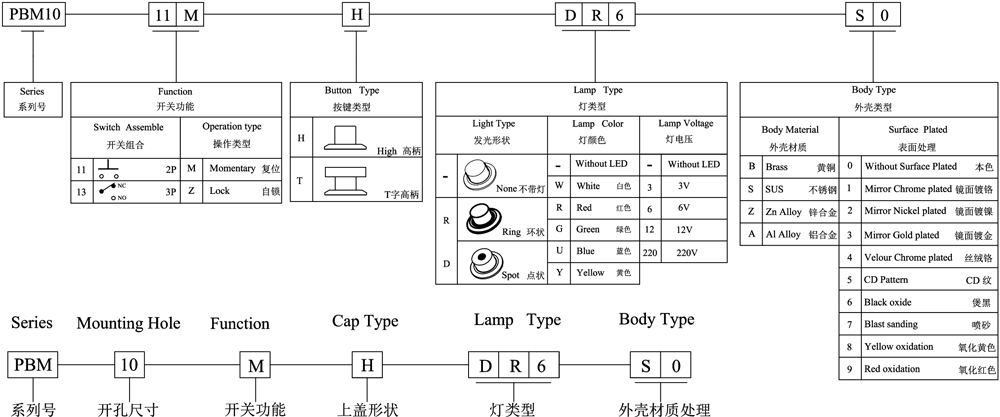

ORDER CODING DIAGRAM
