CLASSIFICATION
PRODUCT MODEL:WRH-1-120-P6N-BB IP65防水
WRH-1-120-P6N-BB IP65防水
PRODUCT SPECIFICATION:
Rating: 20A 125V AC
16A 250V AC
Contact Resistance: 100mΩ Max
Insulation Resistance: DC 500V 10OMΩ Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 250±100gf
Electrical Life: Over 10,000 cycles
Operating Temperature: 0℃~+85℃
16A 250V AC
Contact Resistance: 100mΩ Max
Insulation Resistance: DC 500V 10OMΩ Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 250±100gf
Electrical Life: Over 10,000 cycles
Operating Temperature: 0℃~+85℃
Funtion
Application：
Computer Peripherals 电脑外设
Telecommunications network 电信网络
TV Set-top box 电视机顶盒
Lamp Lighting 灯具照明
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

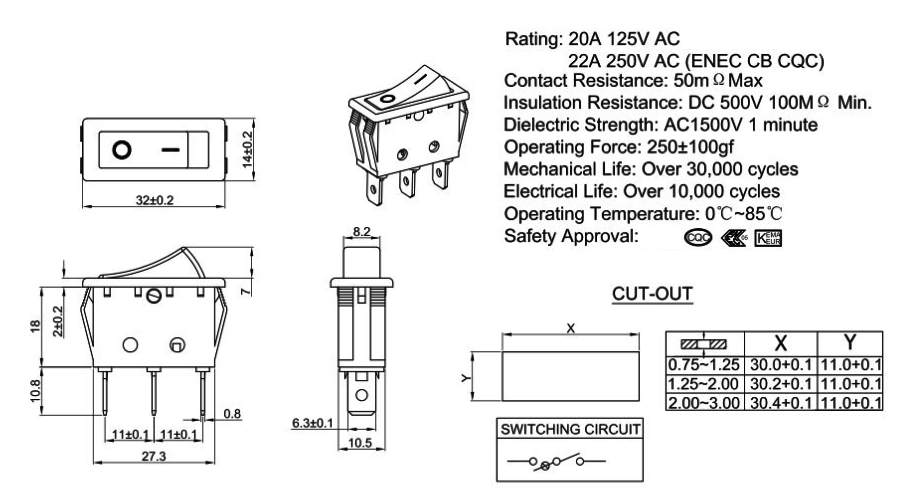

DRAWING
ORDER CODING DIAGRAM
