PRODUCT MODEL:R8017P-R11-2-Q
R8017P-R11-2-Q
PRODUCT SPECIFICATION:
Contact Rating: 5A @125 VAC or 28 VDC (Q terminal)
Electrical Life: 50,000 make and break cycles at full load
Contact Resistance: 10 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
Operating Temperature: -30°C to 85°C
CASE: diallyl phthalate (DAP)
ACTUATOR: ABS, black standard.
FRAME: Nylon (UL 94V-0), black
BUSHING: Copper alloy or Zinc, nickel plated
HOUSING: Stainless Steel
CONTACT & TERMINAL: Copper alloy, silver plated
Application:
取暖器 heater
电风扇 Electric fan
监控摄像头 Surveillance camera
冰箱 refrigerator
空调air conditioning
转向射灯 to shoot the light
洗衣机 washing machine
饮水机等家用电器 water dispenser
其他机械设备Other mechanical equipment

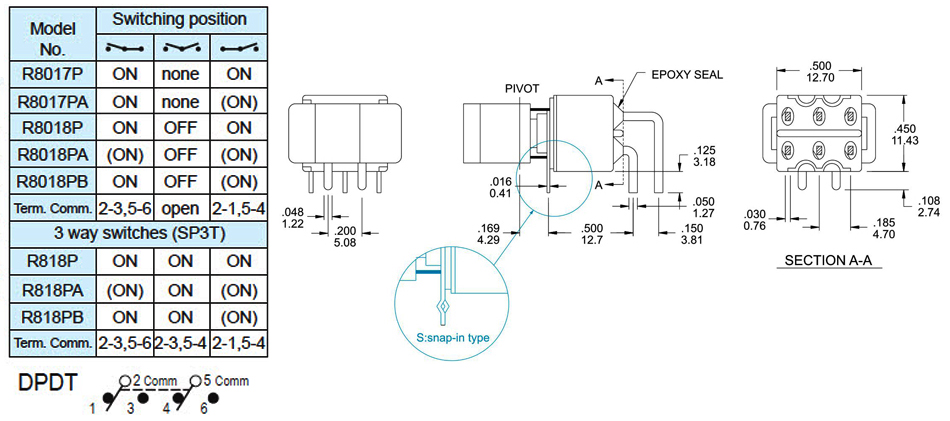

DRAWING

ORDER CODING DIAGRAM
