PRODUCT MODEL:TS26-1-TW-R
TS26-1-TW-R
PRODUCT SPECIFICATION:
Circuit                                    :SPST 1P1T with LED
Current Rating                        :50mA
Voltage Rating                        :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance                  :100mΩ Max(intial )
Insulation Resistance              :100MΩ Min
Operating Force                     :250±50gf
Total Travel                           :0.4±0.1 5mm
Opearating life                       :200,000 Cycles Min
Soldear Specifications             :260°C for 3 Seconds
Function                                :Momentary
Openrating Temperature         :-20°C~+70°C
Application:
Audio / Visual              音响/视听设备
Computer Peripherals   电脑外设
Consumer Electronics   消费类电子
Instrumentation          仪器仪表
Telecommunication      电信,通信设备
Medical Equipmen        医疗设备

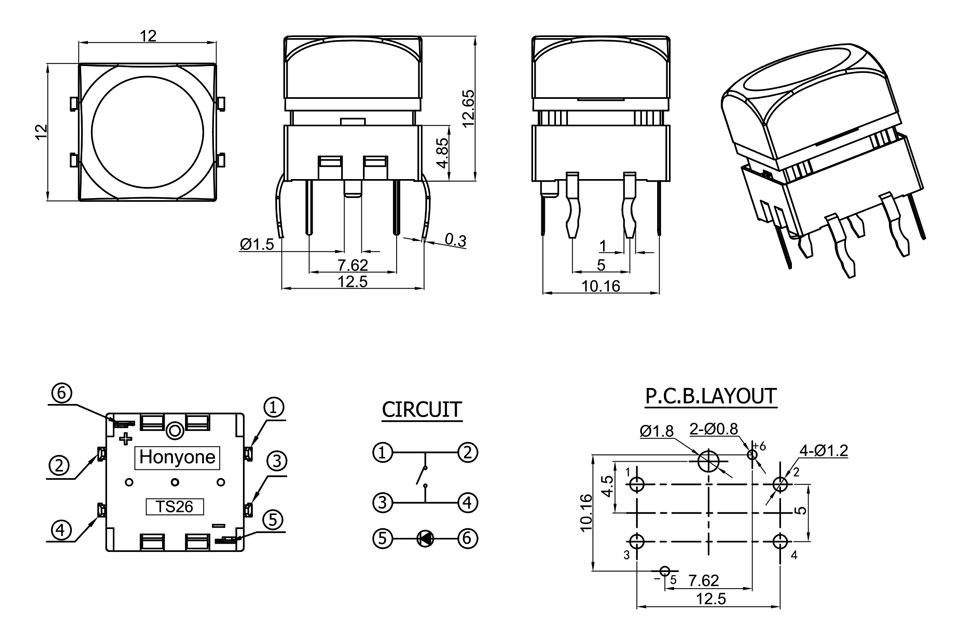

DRAWING

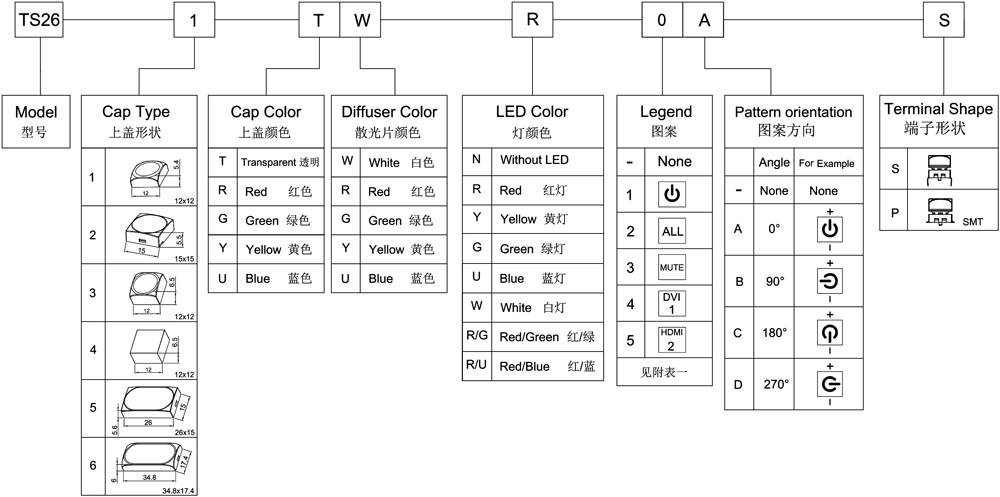

ORDER CODING DIAGRAM
