PRODUCT MODEL:TS27-1-WW-N-1A-S
TS27-1-WW-N-1A-S
PRODUCT SPECIFICATION:
Circuit                                    :SPDT
Current Rating                        :50mA
Voltage Rating                        :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance                 :100mΩ Max(intial )
Insulation Resistance              :100MΩ Min.
Operating Force                     :250±50gf
Total Travel                           :0.4±0.1 5mm
Opearating lifte                      :200,000 Cycles Min
Soldear Specifications             :260°C for 3 Seconds
Function                                :Momentary
Openrating Temperature         :- 20°C~+70°C
Application:
Audio / Visual              音响/视听设备
Computer Peripherals   电脑外设
Consumer Electronics   消费类电子
Instrumentation          仪器仪表
Telecommunication      电信,通信设备
Medical Equipmen        医疗设备

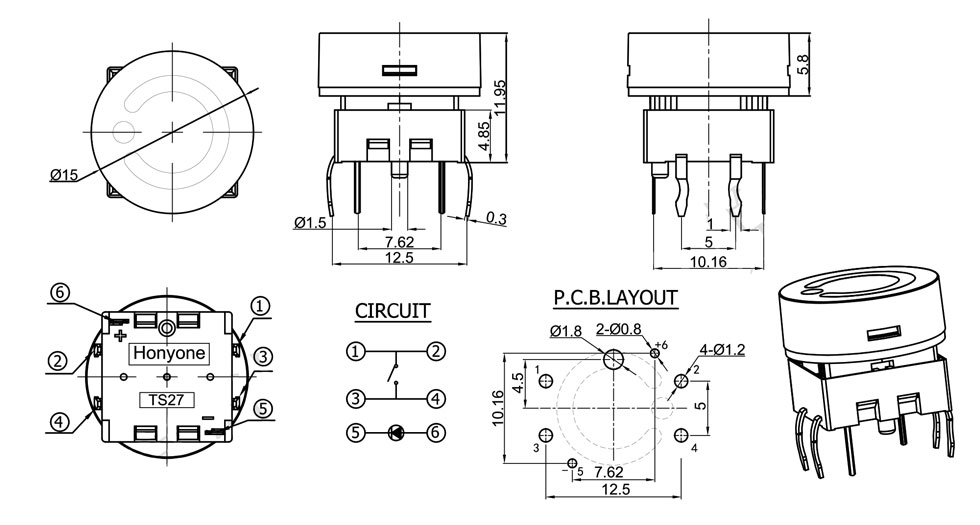

DRAWING
ORDER CODING DIAGRAM
