PRODUCT MODEL:TS22-NU-U-0S
TS22-NU-U-0S
PRODUCT SPECIFICATION:
Circuit                                    :SPST with LED
Current Rating                        :50mA
Voltage Rating                        :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance                 :100mΩ Max(intial )
Insulation Resistance              :100MΩ Min.
Operating Force                     :220±50gf
Total Travel                           :0.3±0.1 mm
Opearating Force                    :100,000 Cycles Min
Soldear Specifications             :260°C for 3 Seconds
Function                                :Momentary
Openrating Temperature         :-20°C~+ 70°C
Sealing                                  :IP67
Application:
Audio / Visual              音响/视听设备
Computer Peripherals   电脑外设
Consumer Electronics   消费类电子
Instrumentation          仪器仪表
Telecommunication      电信,通信设备
Medical Equipmen        医疗设备

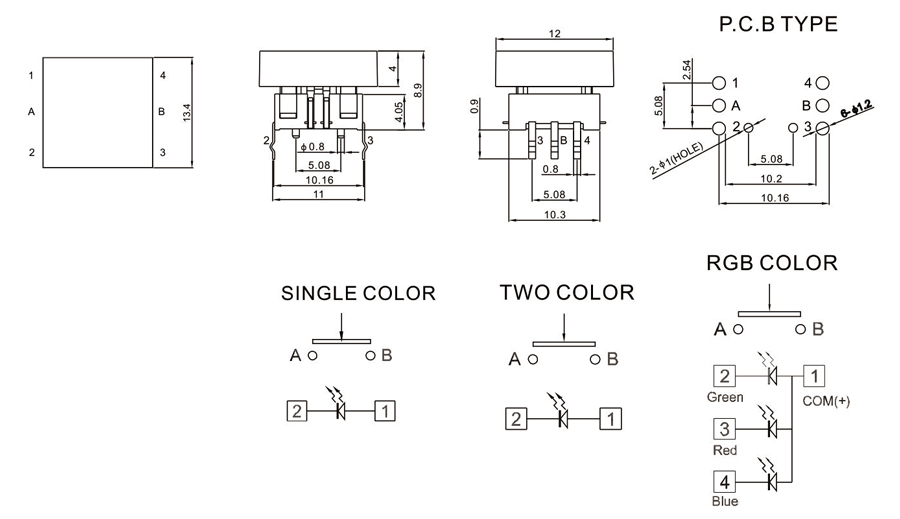

ORDER CODING DIAGRAM
