CLASSIFICATION
PRODUCT MODEL:TS66-A-BB-3P
TS66-A-BB-3P
PRODUCT SPECIFICATION:
Circuit:SPST
Current Rating:50mA/μA10
Voltage Rating:16V DC/1V DC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance:100mΩ Max.(intial )
Insulation Resistance :100MΩ Min.
Operating Force:150±80gf
Full Travel:1.3±0.4mm
Life Test:100,000 Cycles Min
Soldear Specifications:260°C for 5 Seconds
Openrating Temperature:-40°C~ +90°C
Current Rating:50mA/μA10
Voltage Rating:16V DC/1V DC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance:100mΩ Max.(intial )
Insulation Resistance :100MΩ Min.
Operating Force:150±80gf
Full Travel:1.3±0.4mm
Life Test:100,000 Cycles Min
Soldear Specifications:260°C for 5 Seconds
Openrating Temperature:-40°C~ +90°C
Application：
Audio / Visual 音响/视听设备
Computer Peripherals 电脑外设
Consumer Electronics 消费类电子
Instrumentation 仪器仪表
Telecommunication 电信，通信设备
Medical Equipmen 医疗设备

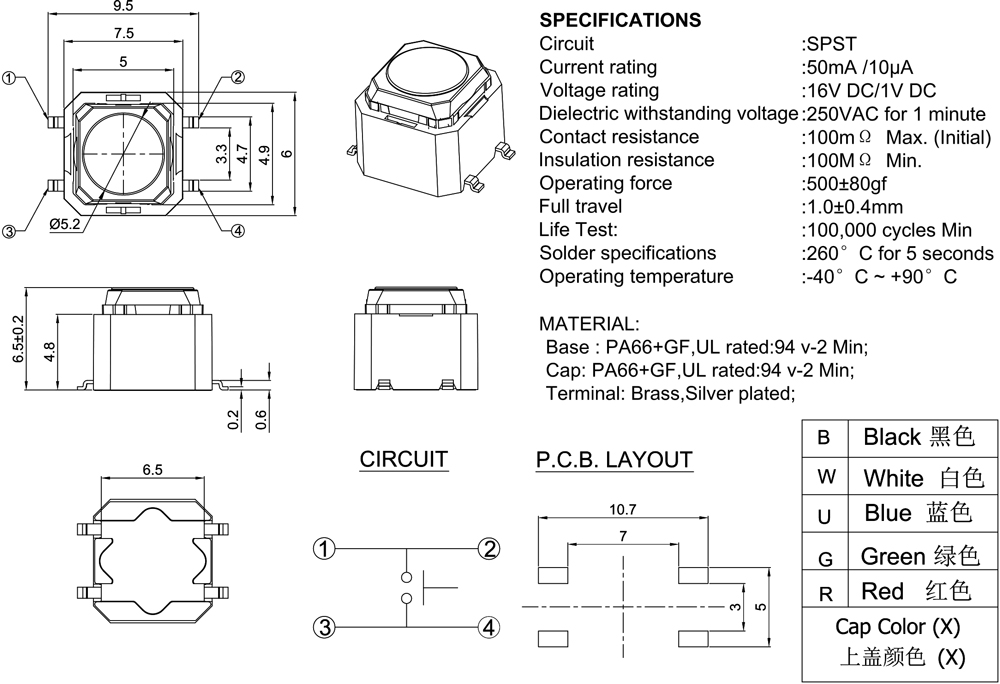

DRAWING

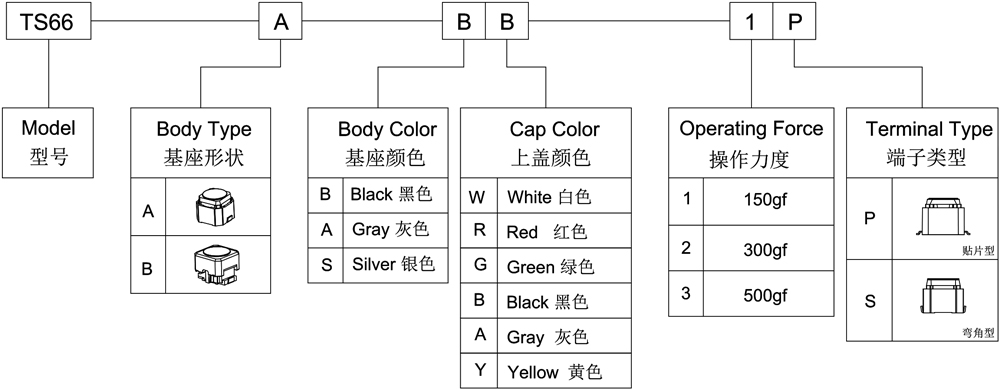

ORDER CODING DIAGRAM
