PRODUCT MODEL:PB06-E-WT-G-N-Y
PB06-E-WT-G-N-Y
PRODUCT SPECIFICATION:
Circuit                                    :OFF-(ON)/Momentary SPST
Current Rating                        :100mA
Voltage Rating                        :12VDC
Dielectric voltage                     :250VAC for 1 minute
Contact Resistance                  :200mΩ Max .(intial)
Insulation Resistance               :100MΩ Min.
Operating Force                      :250±100gf
Total Travel                            :4.5±0.2mm
Opearating life                        :1,000,000 Cycles Min
Manual wdding                       :350°C for 5 Seconds
Openrating Temperature         :-20°C~+70°C
Application:
Video processor           视频处理器
Security Monitoring Equipment
安防监控设备
Teaching recording and broadcasting equipment
教学录播设备
Consumer Electronics   消费类电子
Audio equipment         音响设备

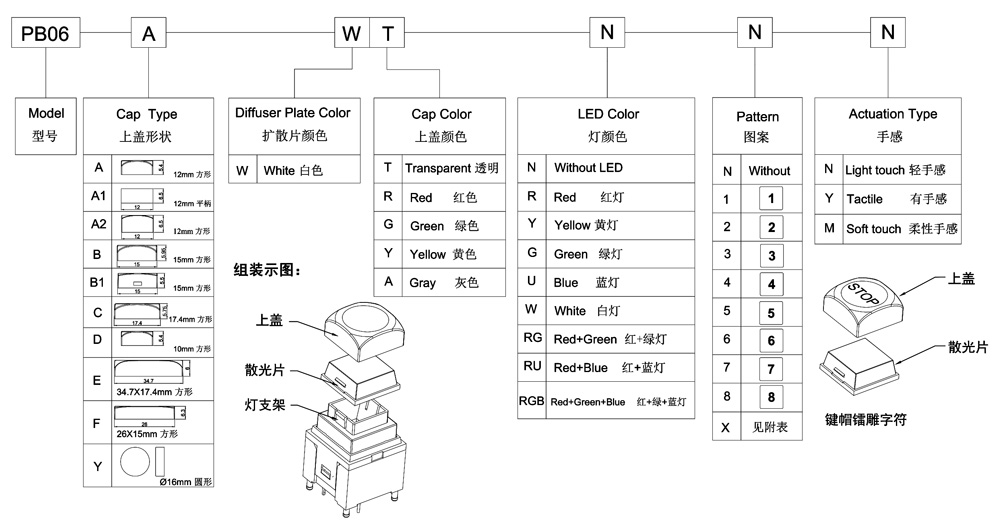

ORDER CODING DIAGRAM
