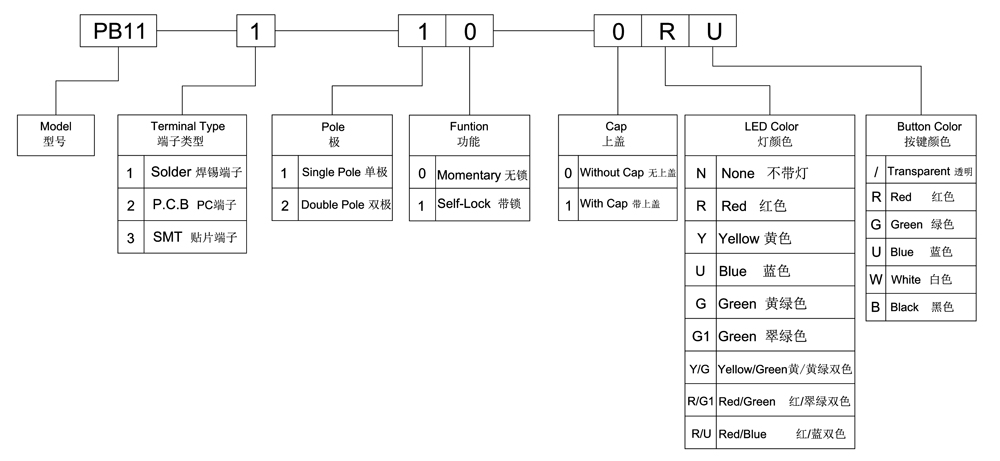

PRODUCT MODEL:PB11-2-21-1GB
PB11-2-21-1GB
PRODUCT SPECIFICATION:
Rating: 0.2A 36VDC
Contact Resistance: 50mΩ Max.
Insulation Resistance:100MΩ Min.
Dielectric Strength:AC 500V 1 minute
Total travel:1 .8±0.3mm
Operating Force:200±100gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature:-20°C~+85°C
Manual Welding:350°C for 3 Seconds
Function: OFF - (ON)
Application:
APPLICATIONS / MARKETS应用市场
Computer Servers/peripherals电脑服务器/外设
Performance Audio 专业音响
Instrumentation 仪器仪表
Telecommunications/networking 电信网络设备
