PRODUCT MODEL:PB15-U1U
PB15-U1U
PRODUCT SPECIFICATION:
Circuit                          :SPST
Current Rating              :100mA
Voltage Rating              :42VDC 42VAC
Dielectric withstanding vltage
:2000VAC for 1 minute
Contact Resistance        :100mΩ Max.(intial)
Insulation Resistance     :100MΩ Min.
Opearating life              :2,000,000 Cycles Min
Soldear Specifications    :256°C for 5 Seconds
Openrating Temperature:-20°C~+70°C
Application:
Stage Lighting control equipment
舞台灯光控制设备
Video processor            视频处理器
Matrix Controller            矩阵控制器
Security equipment       安防设备
Cashier Equipment         收银设备

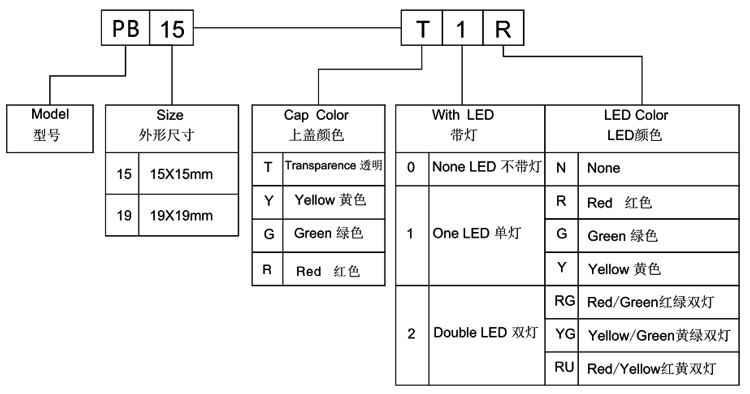

ORDER CODING DIAGRAM
