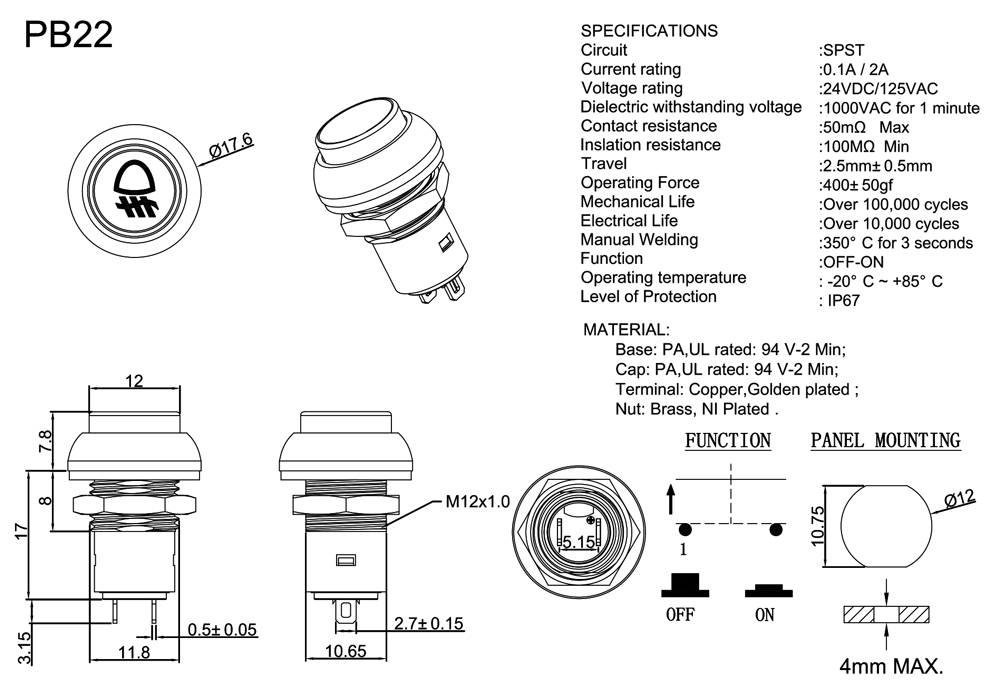

PRODUCT MODEL:PB22-A-2B-W-1
PB22-A-2B-W-1
PRODUCT SPECIFICATION:
Circuit                     :SPST
Current rating          :0.1A/ 2A
Voltage rating          :24VDC/125VAC
Dielectric withstanding voltage
:1000VAC for 1 minute
Contact resistance   :50mΩ Max
Insulation resistance:100MΩ Min
Full Travel               :2.5mm±0.5mm
Lock Travel             :1.5mm±0.5mm
Operating Force       :400+50gf
Mechanical Life        :Over 100,000 cycles
Electrical Life           :Over 10,000 cycles
Manual Welding       :350°C for 3 seconds
Function                 :OFF-ON
Operating temperature:-20°C~+70°C
Level of protection   :IP67
Application:
APPLICATIONS
• Communications  通信设备
• Data entry   数据录入设备
• Hand-held control modules 人工控制手柄
• Outdoor controls   户外电子设备
• Mass transport controls  公共交通车辆控制
• Instrumentation   仪器仪表

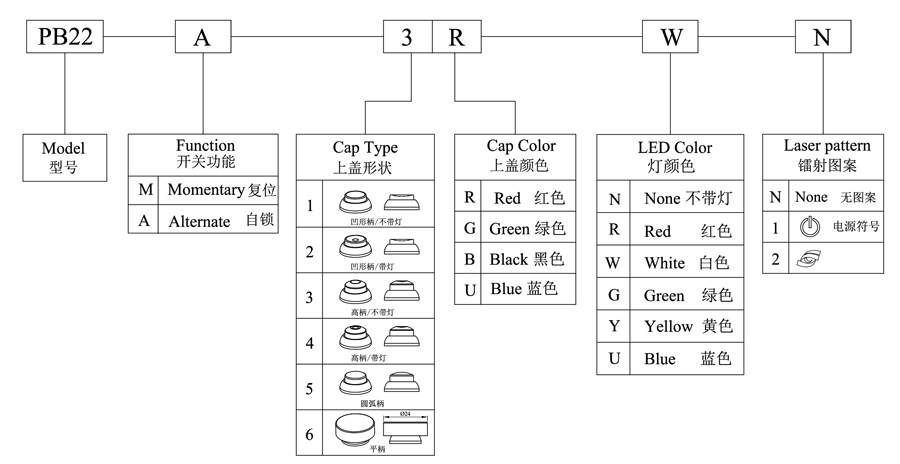

ORDER CODING DIAGRAM
