PRODUCT MODEL:PA12-11-D-BU-2
PA12-11-D-BU-2
PRODUCT SPECIFICATION:
Switch action:   Momentray
Switch circuitry: SPDT-DB ,load 1N.O./1N.C. 2 Circuit Life
Resistive: 28VDC 5A 4A(DB) 25,000 cycles
Resistive: 115VAC, 60Hz 3A 1A(DB) 25,000 cycles
Inductive: 28VDC 2A 2A(DB) 25,000 cycles
Mechanical Life: 1,000,000 cycles
Dielectric strength:: 1000 V AC for 1 min
Operrting temperature: -40 C to +85 C
Actuator Ingress Protection: IP67,IP68S,and IP69K  (Front Panel).
Total traver: 2mm max.   Overtravel: 0.25mm min
Operating Force :1.7lbs [770g]. Release Force :12oz [340g]
Stands: UL61058   ROHS
Application:
• Electronic handle        电控手柄
• Off-road transportation  户外交通运输
• Joysticks                操纵杆
• Typically used in cranes   起重机
• Construction equipment   建筑工程机械
• Agricultural equipment    农业设备
• Mining,equipment.        采购设备
• Computers & network equipment   电脑周边设备

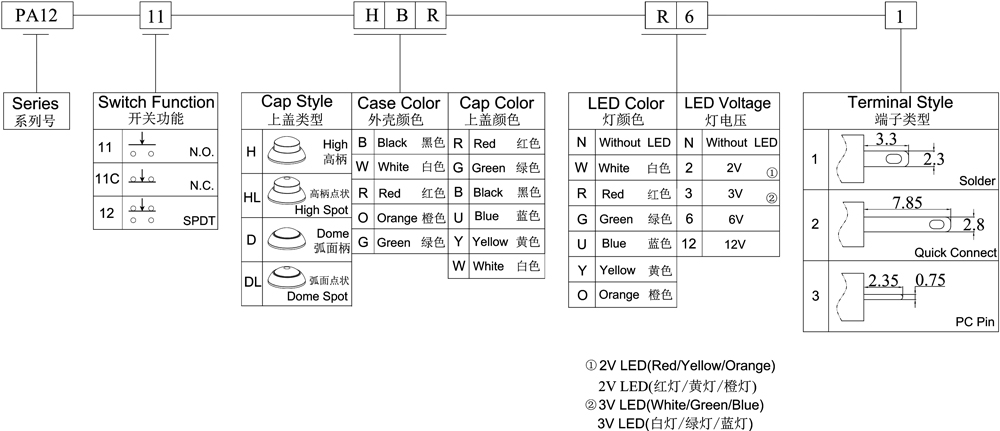

ORDER CODING DIAGRAM
