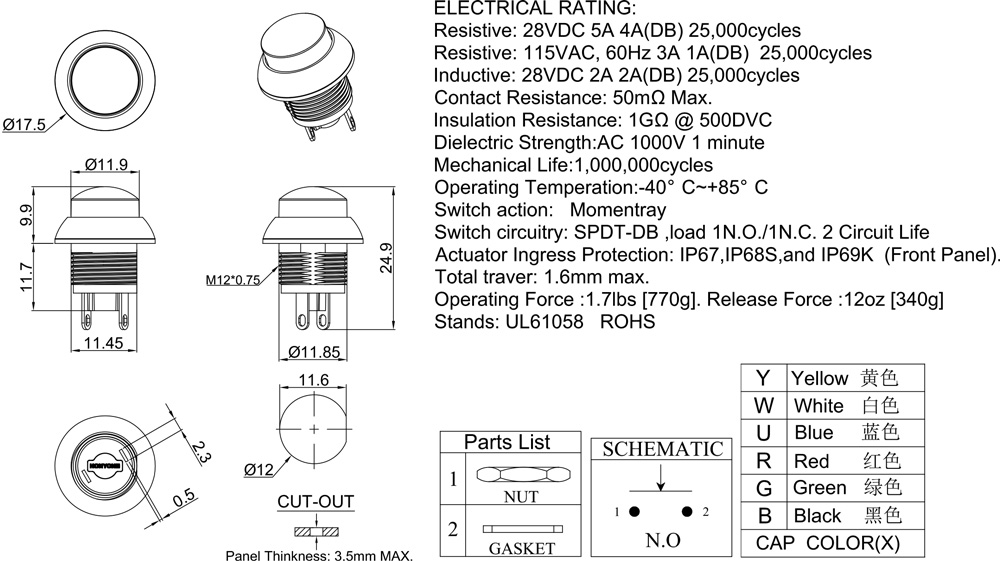

PRODUCT MODEL:PA12-11-H-BR-1
PA12-11-H-BR-1
PRODUCT SPECIFICATION:

Switch action:   Momentray

Switch circuitry: SPDT-DB ,load 1N.O./1N.C. 2 Circuit Life

Resistive: 28VDC 5A 4A(DB) 25,000 cycles

Resistive: 115VAC, 60Hz 3A 1A(DB) 25,000 cycles

Inductive: 28VDC 2A 2A(DB) 25,000 cycles

Mechanical Life: 1,000,000 cycles

Dielectric strength:: 1000 V AC for 1 min

Operrting temperature: -40 C to +85 C

Actuator Ingress Protection: IP67,IP68S,and IP69K  (Front Panel).
Total traver: 2mm max.   Overtravel: 0.25 mmmin

Operating Force :1.7lbs [770g]. Release Force :12oz [340g]

Stands: UL61058   ROHS

Application:

• Electronic handle        电控手柄
• Off-road transportation  户外交通运输
• Joysticks                操纵杆
• Typically used in cranes   起重机
• Construction equipment   建筑工程机械
• Agricultural equipment    农业设备
• Mining,equipment.        采购设备
• Computers & network equipment   电脑周边设备

ORDER CODING DIAGRAM
