CLASSIFICATION
PRODUCT MODEL:PBS-三角型按钮
PBS-三角型按钮
PRODUCT SPECIFICATION:
Rating： 5A125VAC / 250VAC
Contact Resistance(CR)：≤100mΩ
Mechanical life：1,000,000
Electrical life：10,000
Insulation resistance(IR)：≥100MΩ DC500V
Dielectic votage-wothstand(WV)：AC1500V 1 minute
Operating temperature：-25℃~+85℃
Store humidity：<85% RH
Contact Resistance(CR)：≤100mΩ
Mechanical life：1,000,000
Electrical life：10,000
Insulation resistance(IR)：≥100MΩ DC500V
Dielectic votage-wothstand(WV)：AC1500V 1 minute
Operating temperature：-25℃~+85℃
Store humidity：<85% RH
Application：
Game Button Switch、Parking equipment
Automatic control、Machine tool Equipment
Gas station Equipment、Vending machines
Product word：
Push button switches,Led push button switches,
Indicator button switch, waterproof button switch,
reset button switch with light,
self-locking button switch with light,
12mm button switch, 16mm button switch
Automatic control、Machine tool Equipment
Gas station Equipment、Vending machines
Product word：
Push button switches,Led push button switches,
Indicator button switch, waterproof button switch,
reset button switch with light,
self-locking button switch with light,
12mm button switch, 16mm button switch

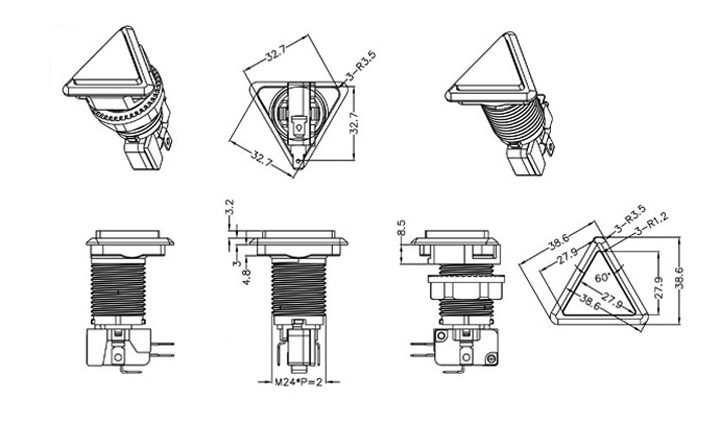

DRAWING
ORDER CODING DIAGRAM
