PRODUCT MODEL:TS4-2GN-0
TS4-2GN-0
PRODUCT SPECIFICATION:
Circuit:SPST SPDT
Current Rating:30mA
Voltage Rating:30VDC
Dielectric withstanding voltage:250VAC for 1 minute
Contact Resistance:100mΩ Max .(initial)
Insulation Resistance:100MΩ Min.
Operating Force:250±50gf
Total Travel:1.0±0.2mm
Opearating Force:100,000 Cycles Min
Soldear Specifications:260℃ for 5 Seconds
Function:Momentary
Openrating Temperature:-20℃~+70℃
Application:
Video processor 视频处理器
Professional Audio 专业音响
Instruments and meters仪器仪表
Computer Peripherals电脑外设
Cashier Equipment  收银设备

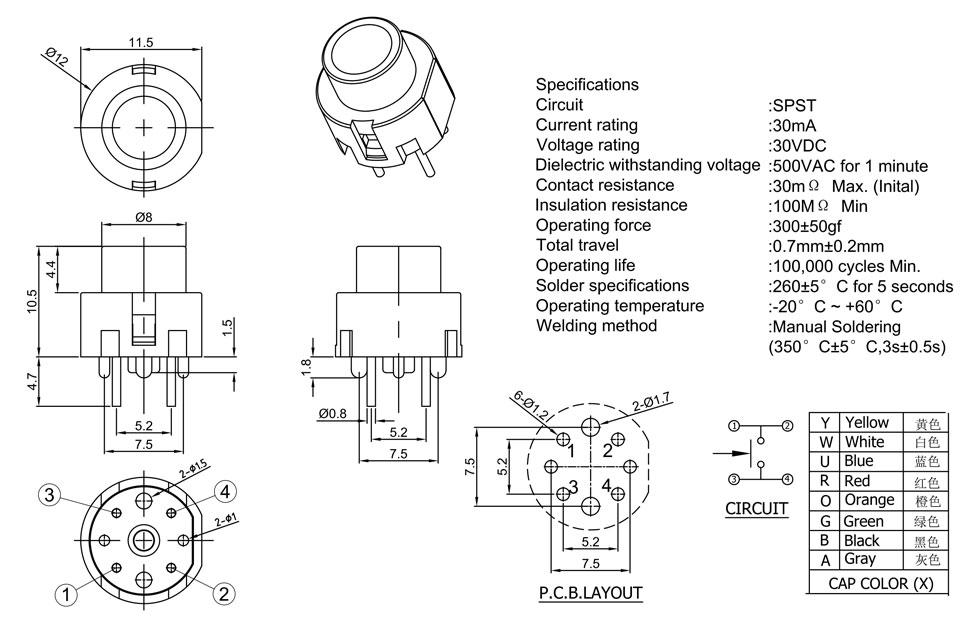

DRAWING
ORDER CODING DIAGRAM
