PRODUCT MODEL:TS3-3SR-3B-3B
TS3-3SR-3B-3B
PRODUCT SPECIFICATION:
Circuit                                    :SPST
Current Rating                        :50mA
Voltage Rating                        :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance                  :100mΩ Max .(intial)
Insulation Resistance               :100MΩ Min.
Operating Force                      :180±50gf or 250+50gf
Total Travel                            :0.25±0.1mm
Opearating lite                        :200,000 Cycles Min
Soldear Specifications              :260°C for 3 Seconds
Function                                 :Momentary
Openrating Temperature          :-20°C~+ 70°C
Application:
Audio / Visual              音响/视听设备
Computer Peripherals   电脑外设
Consumer Electronics   消费类电子
Instrumentation          仪器仪表
Telecommunication      电信,通信设备
Medical Equipmen        医疗设备

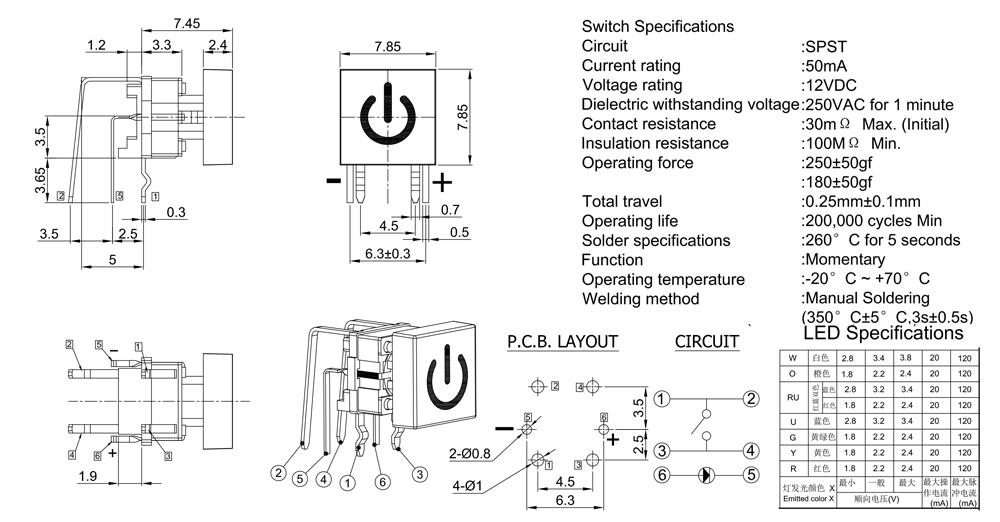

ORDER CODING DIAGRAM
