PRODUCT MODEL:PS12-11M-F-NNN-S0
PS12-11M-F-NNN-S0
PRODUCT SPECIFICATION:
Circuit                            :SPST
Current rating                 :0.1A/ 2A
Voltage rating                 :24VDC/125VAC
Dielectric withstanding voltage:1000VAC for 1 minute
Contact resistance             :50mΩ Max
lnslation resistance           :100MΩ Min
Full Travel :2.5mm±0.5mm Lock Travel :1.5mm±0.5mm
Operating Force                :300±100gf
Mechanical Life                :Over 1,000,000 cycles
Electrical Life               :Over 100,000 cycles
Manual Welding :350°C for 3 seconds Function:OFF-ON
Operating temperature :-20°C~+85℃
Level of protection :lP65
Application:
电子门锁系统 Electronic lock system
酒店设备       Hotel equipment
通信医疗设备 Communication medical equipment
小家电          Small home appliance
航空航天船舶 Aerospace ship
汽车周边产品 Automobile peripheral products

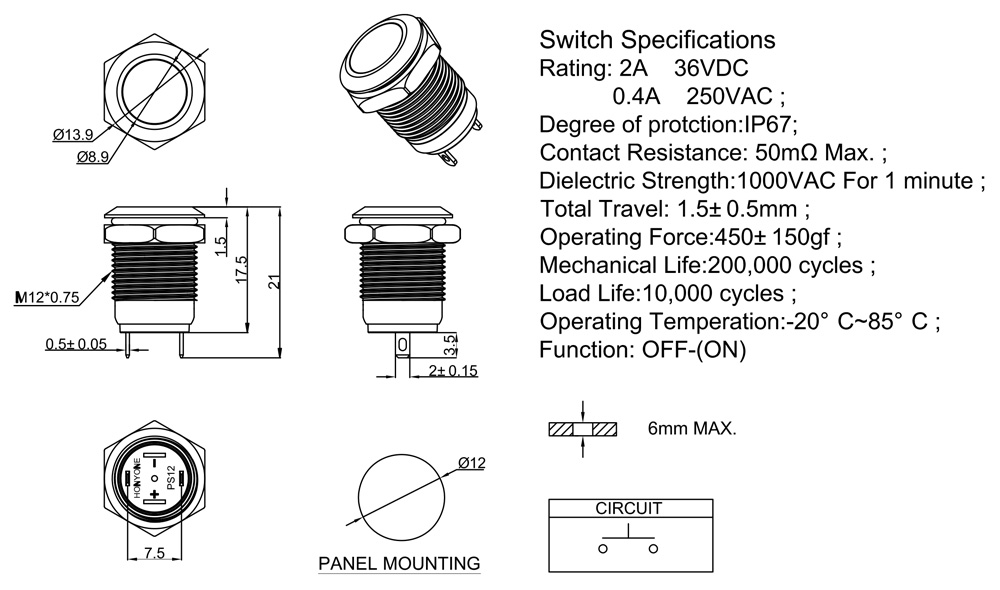

ORDER CODING DIAGRAM
