PRODUCT MODEL:PB203-23-1-R-H
PB203-23-1-R-H
PRODUCT SPECIFICATION:
Current Rating:1A-3A
Voltage Rating:30VDC
Contact Resistance:100mΩ Max
Insulation Resistance:100MΩ
Withstand Voltage:1000VAC for 1 Minute
Operating Force:500±200gf
Total Travel:1.5±0.3mm
Opearating Force:20,000 Cycles Min
Openrating Temperature:-20℃~+70℃
Application:
•The flashlight·手电筒
•Miner headlamp·矿工头灯
•Outdoor head lamp·户外头灯
•Electric rice cooker·电饭锅
•Electric kettle·电热水壶
•Household appliances·家用电器

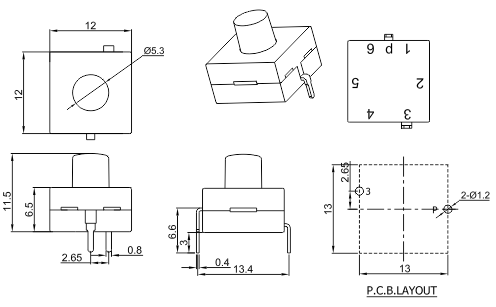

ORDER CODING DIAGRAM
