PRODUCT MODEL:PBM16-11Z-F-NNN-S0-S
PBM16-11Z-F-NNN-S0-S
PRODUCT SPECIFICATION:
Rated voltage : 2A  Ui:250V;
Working environment temperature : -25℃~+65℃;
Action form:self-locking ;
Movement stroke: about3mm
Connection form : supporting connector/welding wire;
Tightening torque: 5-14nm; Switch combination : 1NO;
Appearance material: Keypad: Brass/stainless steel;
Case : Brass/ stainless steel; Pedestal : PBT;
Protection grade: IP65. Contact resistance:≤50m Ω.
The insulation resistance: ≥100M Ω
Electrical resistance: AC2500v,1min,noflicker and breakdown ;
Life: electrical part :50,000 times
Mechanical part:  500, 000times.
Application:
电子门锁系统 Electronic lock system
酒店设备       Hotel equipment
通信医疗设备 Communication medical equipment
小家电          Small home appliance
航空航天船舶 Aerospace ship
汽车周边产品 Automobile peripheral products

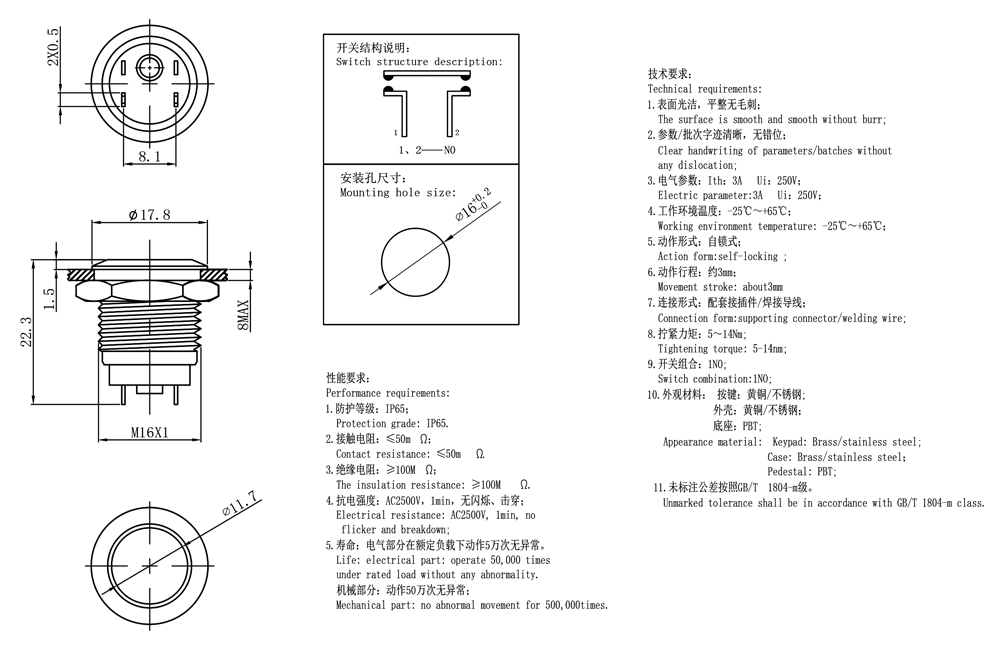

ORDER CODING DIAGRAM
