CLASSIFICATION
PRODUCT MODEL:PBM19-11M-F-NNN-S0
PBM19-11M-F-NNN-S0
PRODUCT SPECIFICATION:
Rating: 6A 250VAC ;
2A36VDC ;
Degree of protction:lP67;
Contact Resistance: 50mΩ Max. ;
Dielectric Strength:1500VAC For 1 minute ;
Total Travel: 1.5±0.5mm ;
Operating Force:600±200gf ;
Mechanical Life:50,000 cycles ;
Load Life:10,000 cycles ;
Operating Temperation:-20° C~85°C;
Function: OFF-(ON)
2A36VDC ;
Degree of protction:lP67;
Contact Resistance: 50mΩ Max. ;
Dielectric Strength:1500VAC For 1 minute ;
Total Travel: 1.5±0.5mm ;
Operating Force:600±200gf ;
Mechanical Life:50,000 cycles ;
Load Life:10,000 cycles ;
Operating Temperation:-20° C~85°C;
Function: OFF-(ON)
Application：
电子门锁系统 Electronic lock system
酒店设备 Hotel equipment
通信医疗设备 Communication medical equipment
小家电 Small home appliance
航空航天船舶 Aerospace ship
汽车周边产品 Automobile peripheral products

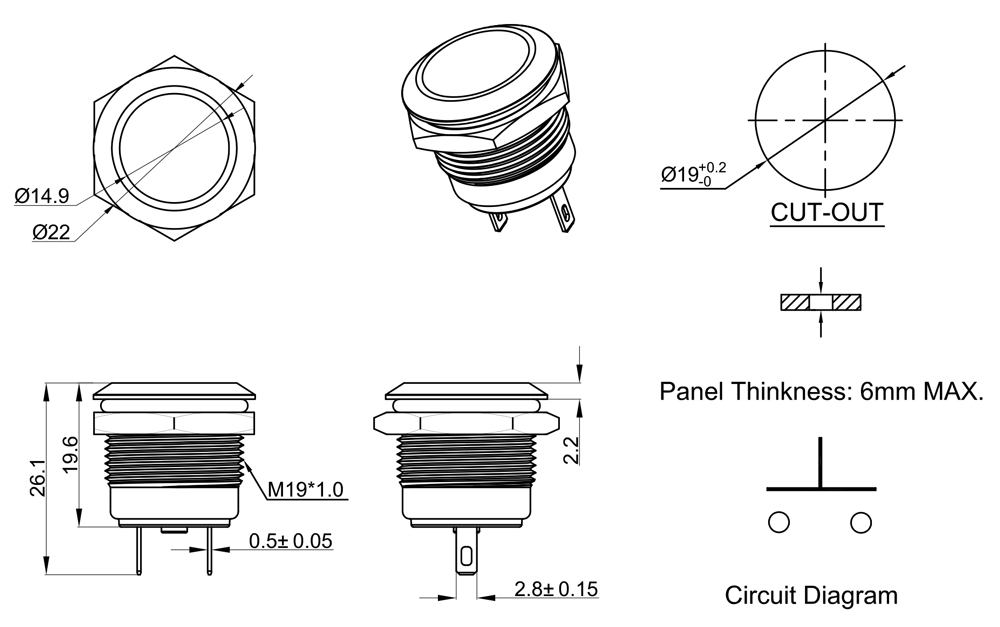

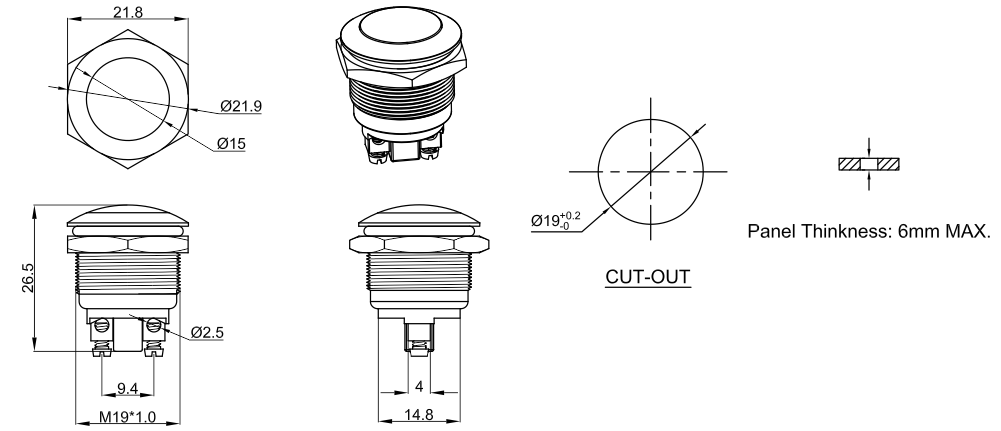

DRAWING
ORDER CODING DIAGRAM
