CLASSIFICATION
PRODUCT MODEL:PBM19-11M-C-NNN-S0-S
PBM19-11M-C-NNN-S0-S
PRODUCT SPECIFICATION:
Circuit:SPST Current rating:100mA
Voltage rating: 50VDC
Dielectric withstanding voltage :1000VAC for 1 minute
Contact resistance:50mΩ Max
Insulation resistance:100MΩ Min
Travel:1. 8mm±0.4mm
Operating Force:900±200gf
Mechanical life:30,000 cycles Min
Electric life:30,000 cycles Min
Solder specifications:260° C for 5 seconds
Function:Momentary
Operating temperature: -55° C~ +125° C
Sealing: Front-IP68,Back-IP65.
Voltage rating: 50VDC
Dielectric withstanding voltage :1000VAC for 1 minute
Contact resistance:50mΩ Max
Insulation resistance:100MΩ Min
Travel:1. 8mm±0.4mm
Operating Force:900±200gf
Mechanical life:30,000 cycles Min
Electric life:30,000 cycles Min
Solder specifications:260° C for 5 seconds
Function:Momentary
Operating temperature: -55° C~ +125° C
Sealing: Front-IP68,Back-IP65.
Application：
电子门锁系统 Electronic lock system
酒店设备 Hotel equipment
通信医疗设备 Communication medical equipment
小家电 Small home appliance
航空航天船舶 Aerospace ship
汽车周边产品 Automobile peripheral products

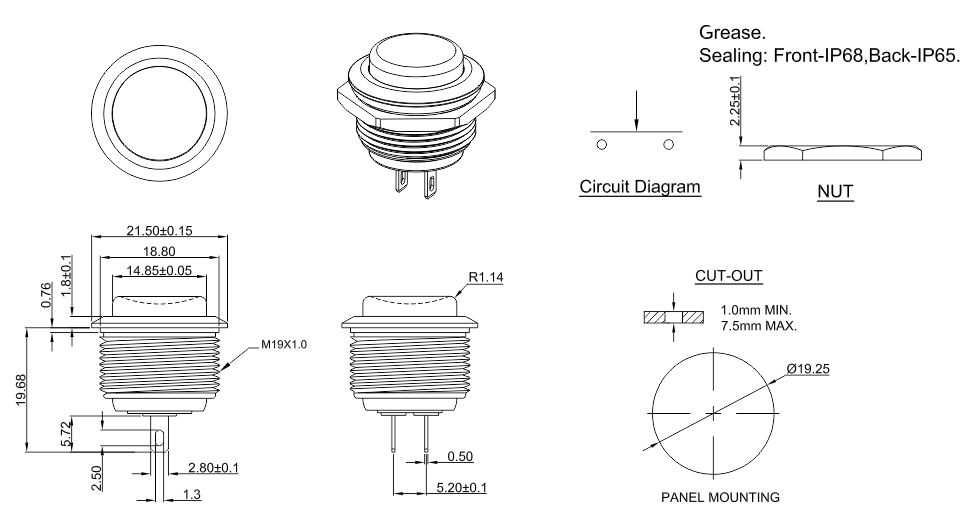

DRAWING

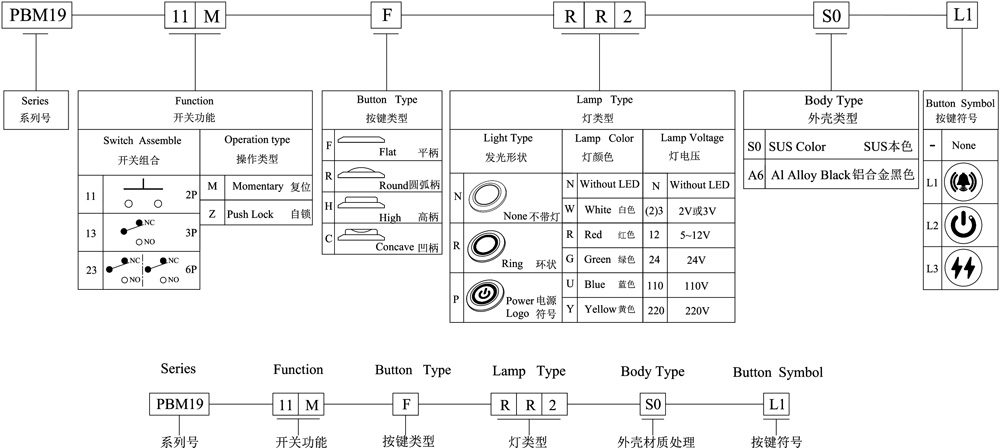

ORDER CODING DIAGRAM
