PRODUCT MODEL:TS6-A-00-BTR-0-1
TS6-A-00-BTR-0-1
PRODUCT SPECIFICATION:
Circuit                                    :DPDT 2P2T
Current Rating                        :100mA
Voltage Rating                        :30VDC
Dielectric withstanding voltage :250VAC ftor 1 minute
Contact Resistance                 :100mΩ Max .(intial)
Insulation Resistance              :100MΩ Min.
Operating Force                     :150±100(MOM)
Total Travel                           :1.6±0.4mm
Opearating life                       :50,000 Cycles Min
Soldear Specifications             :260°C for 5 Seconds
Function                                :Momentary or self-lock
Openrating Temperature         :-20°C~+ 70°C
Application:
Audio / Visual              音响/视听设备
Computer Peripherals   电脑外设
Consumer Electronics   消费类电子
Instrumentation          仪器仪表
Telecommunication      电信,通信设备
Medical Equipmen        医疗设备

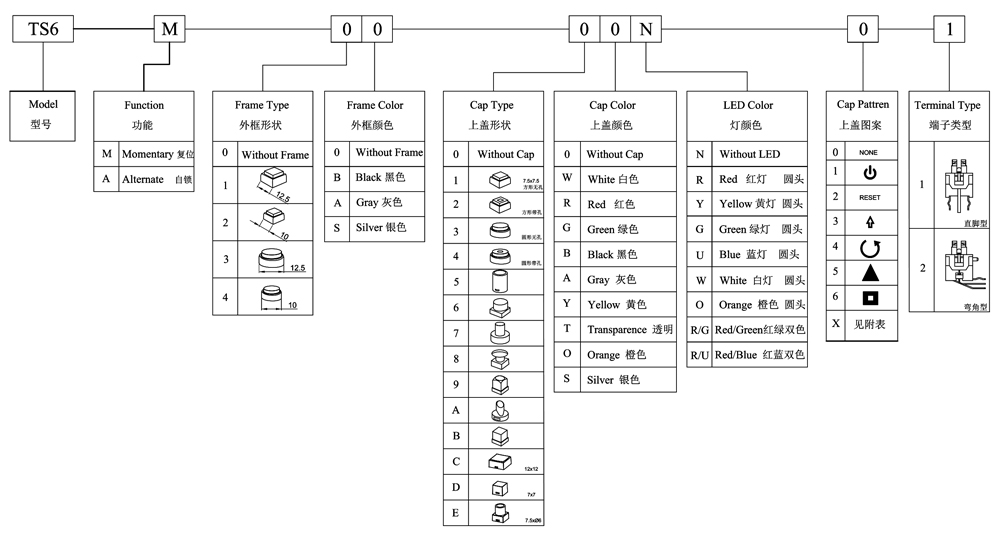

ORDER CODING DIAGRAM
