PRODUCT MODEL:PS19-22Z-H-NNN-S0
PS19-22Z-H-NNN-S0
PRODUCT SPECIFICATION:
Rating:16A  125VAC;:16A  250VAC;
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100mΩ Min;
Dielectric Strength:AC 1500V 1 minute
Total Travel:5.0±0.5mm
Operating Force:750±200gf
Mechanicai Life:Over 30,000 cycles
Electrical Life:Over 10,000 cycles
Operating Temperature:-20℃ ~70℃
Protection type:IP40(terminal side)
IP65(Panel waterproof)
Mechanical collision protection type:IK07
Function:OFF-ON
Application:
电子门锁系统 Electronic lock system
酒店设备       Hotel equipment
通信医疗设备 Communication medical equipment
小家电          Small home appliance
航空航天船舶 Aerospace ship
汽车周边产品 Automobile peripheral products

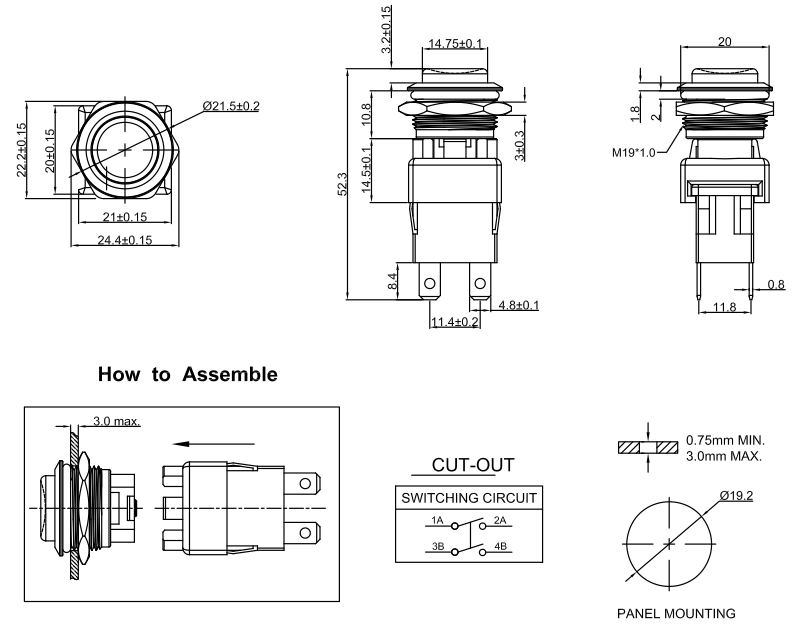

DRAWING

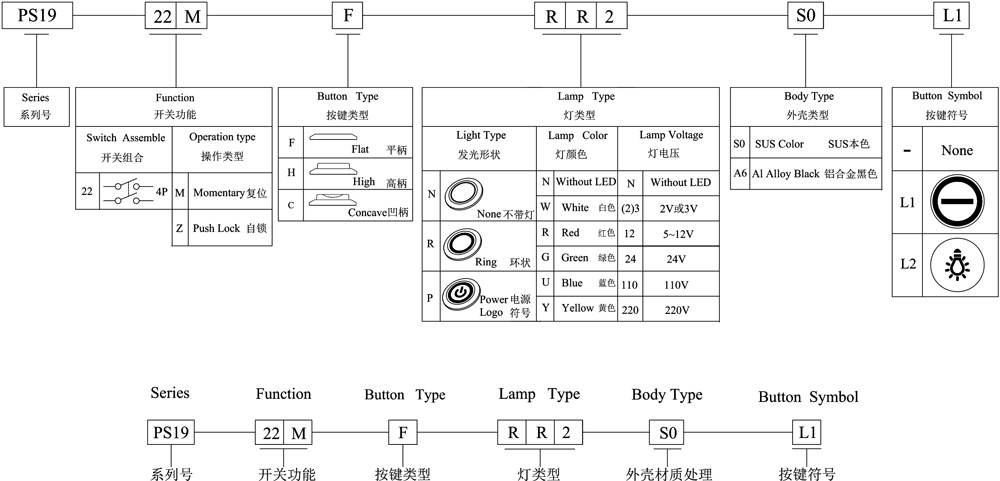

ORDER CODING DIAGRAM
