CLASSIFICATION
PRODUCT MODEL:PBM25-12M-F-NNN-S0
PBM25-12M-F-NNN-S0
PRODUCT SPECIFICATION:
Rating:5A 250VACmax;2A 36VDCmax;
Contact Resistance:50mΩ Max;
Dielectric Strength:1000VAC for 1 Minute;
Total Travel:2.5±0.5mm;
Operating Force:600±200gf
Mechanical Life:2000,000cycles;
Load Life:50,000cycles;
Operating Temperature:-20℃~70℃
Function:Momentary
Application：
• Outdoor Controls ·户外控制
• Security Equipment ·安全设备
• Medical Equipment ·医疗设备
• Food Processing Equipment ·食品加工设备
• Military Equipment ·军用设备
• Industrial Machinery ·工业机械
• Transportation: Mass-Transit, Lift Trucks
·运输: 大众运输, 起重卡车

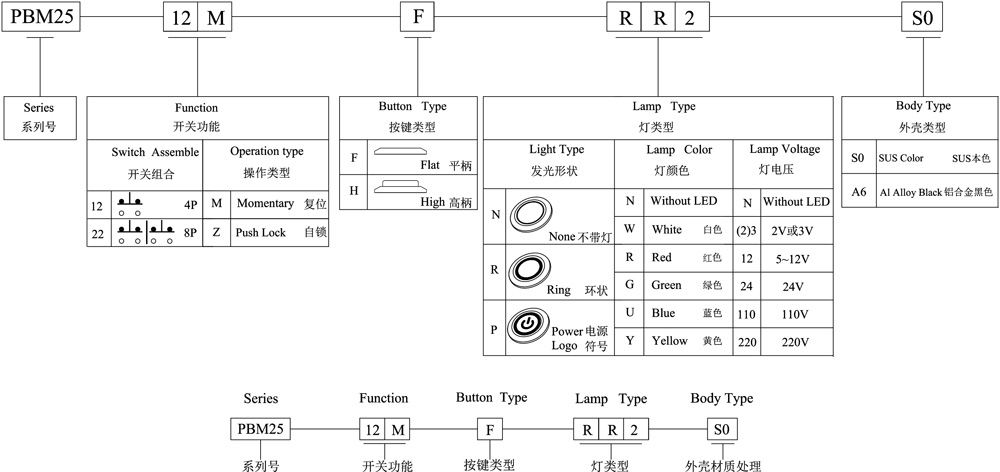

ORDER CODING DIAGRAM
