CLASSIFICATION

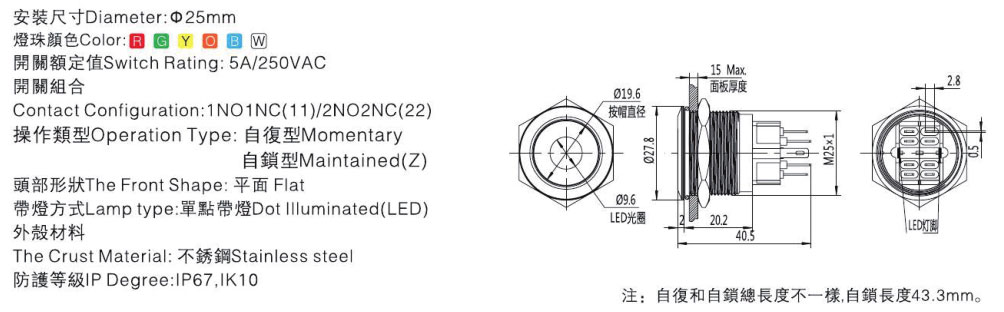

PRODUCT MODEL:PBM25-22Z-F-DR3-S0
PBM25-22Z-F-DR3-S0
PRODUCT SPECIFICATION:
Rating:5A 250VAC max;:2A 36VDCmax
Contact Resistance:50MΩ Max.;
Dielectric Strength:1000VAC for 1 Minute;
Total Travel:2.8±0.5mm;
Operating Force:600±200gf;
Mechanical Life:200,000Cycles;
Load Life:50,000cycles;
Operating Temperature:-20°C~70°C；
Function:ON-OFF OFF-(ON)
Application：
• Outdoor Controls ·户外控制
• Security Equipment ·安全设备
• Medical Equipment ·医疗设备
• Food Processing Equipment ·食品加工设备
• Military Equipment ·军用设备
• Industrial Machinery ·工业机械
• Transportation: Mass-Transit, Lift Trucks
·运输: 大众运输, 起重卡车
ORDER CODING DIAGRAM
