PRODUCT MODEL:FB-560
FB-560
PRODUCT SPECIFICATION:
Housing : Glass filled polyester UL94-V0
Insulation Resistance:103MΩ at V=100V
Temperature Range:-55℃ to 125℃
Contact:Beryllium copper,Heat treated
Plating:Nickel / Tin
Max. Current Rating:6.3A
Contact Resistance:<4mΩ
Insertion Force:<200g
Withdrawal Force: >50g
Application：
Circuit overload Protection电路过载保护
Automotive Electronics 汽车电子
Household appliances 家用电器
Beauty Equipment 美容器材
Medical equipment 医疗设备
Instruments and meters 仪器仪表

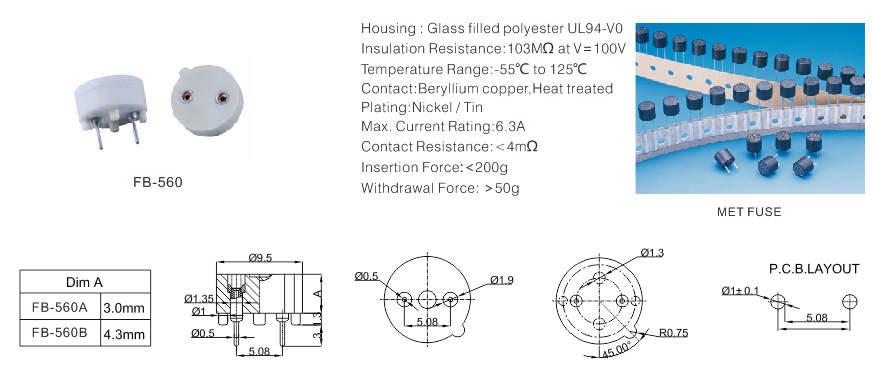

DRAWING
ORDER CODING DIAGRAM
