PRODUCT MODEL:PB13-A5-R
PB13-A5-R
PRODUCT SPECIFICATION:
Rating:0.5A 30VDC 0.25A 50VAC
Contact Resistance:50mΩ Max
Insulation Resistance:100MΩ Min.
withstand Voltage:1000VAC for 1 Minute
Operating Force:300±100gf or 400±100gf
Travel:1.0±0.25mm
Life Cycle:100,000Cycles
Function:Momentary
Operating Temperature:256℃ for 5 Seconds
Application:
APPLICATIONS/MARKETS 应用市场
Telecommunications  电信设备
Networking  网络通信
Computers/servers 电脑服务器
Performance audio 专业音响
Instrumentation   仪器仪表
Low power on/off designs  低电流开关设备
External hard drives and modems 移动硬盘与光猫

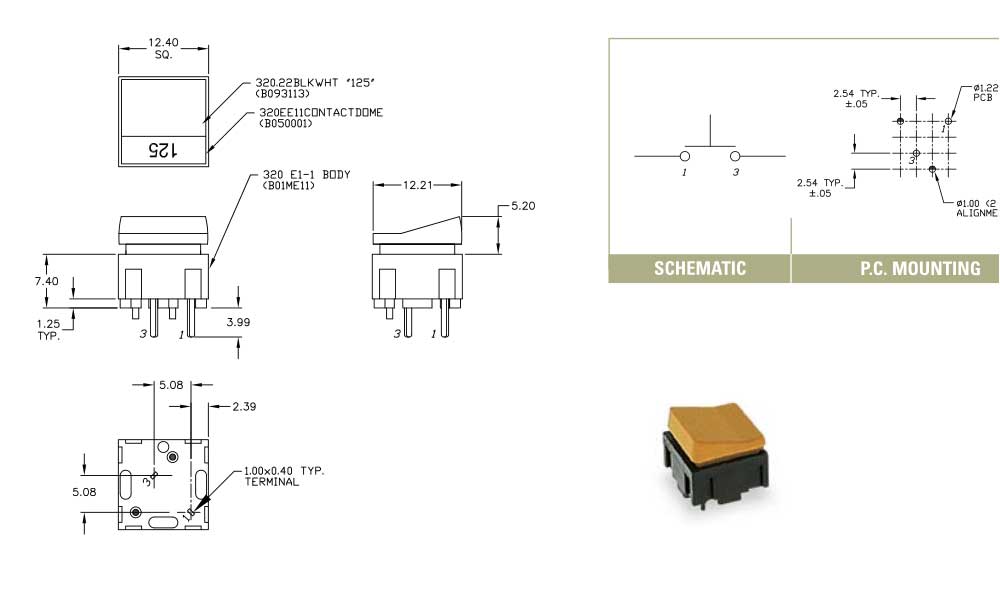

DRAWING
ORDER CODING DIAGRAM
