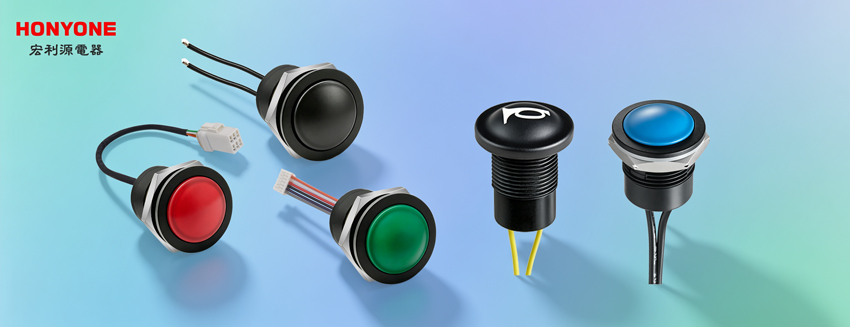

HONYONE launches a fully submersible illuminated push button that can work directly submerged in water, built with overmolded bottom and cable tail for full sealing protection.
Key Product Advantages
Semi-transparent button cap
The top actuator uses light-transmitting semi-transparent material, supporting customized LED illuminated versions for status indication.
Patented butterfly contact structure
Our proprietary butterfly internal contact delivers long travel, sharp tactile feedback, stable operation force and crisp comfortable pressing feel, lowering misoperation risks.
Dual functional options
NO momentary self-reset
NO+NC combined circuit
Custom special functions are available on request.
Standard Specifications
Electrical rating: 2A 250VAC / 2A 24VDC, max load 500W
Mechanical life: 1,000,000 cycles
Mounting hole: 16mm for universal equipment installation
Pre-wired & Customizable
Each switch comes pre-assembled with standard AWG20 wires protected by overmolding. Customizable items include cable length, wire gauge, connectors, LED colors and switch functions.
Common Applications
Industrial control, outdoor machinery, marine electronics, water treatment, medical, food processing, cleaning & agricultural equipment
About HONYONE
With 26 years manufacturing experience, HONYONE supplies push buttons, rocker switches, fuse holders and power modules globally for automation, medical, transport and new energy industries.
Contact our team for datasheets and samples.

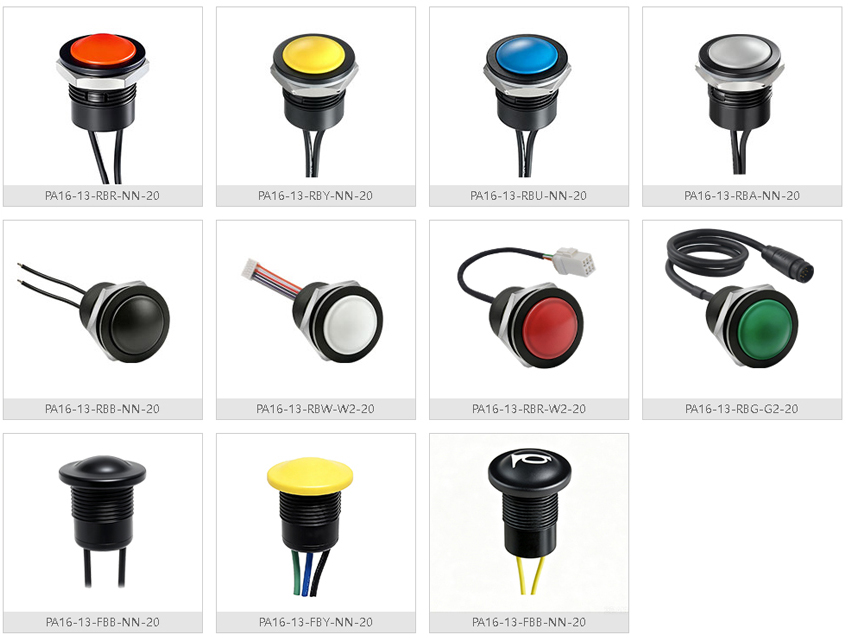

Click to learn more about the PA16 Series：https://www.honyone.com/en/products/list_60_1.html
