CLASSIFICATION
PRODUCT MODEL:R-1-110-P5N-BB IP65
R-1-110-P5N-BB IP65
PRODUCT SPECIFICATION:
Rating:20A 125V AC
22A 250V AC (ENEC CB CQC)
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 1500V 1 minute
Electrcal Life:600±150gf
Operating Temperature:Over 10,000cycles;
Safety Approval:-20°C~+85°C
Funtion
Application：
Computer Peripherals 电脑外设
Telecommunications network 电信网络
TV Set-top box 电视机顶盒
Lamp Lighting 灯具照明
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

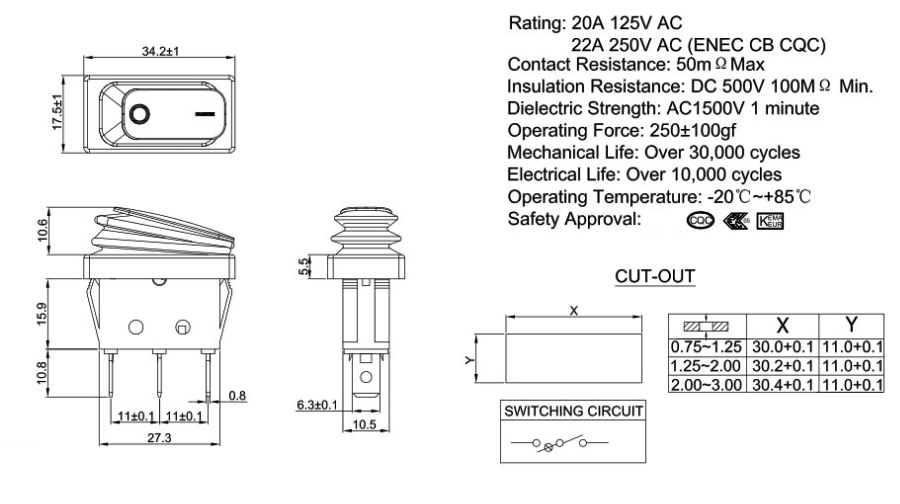

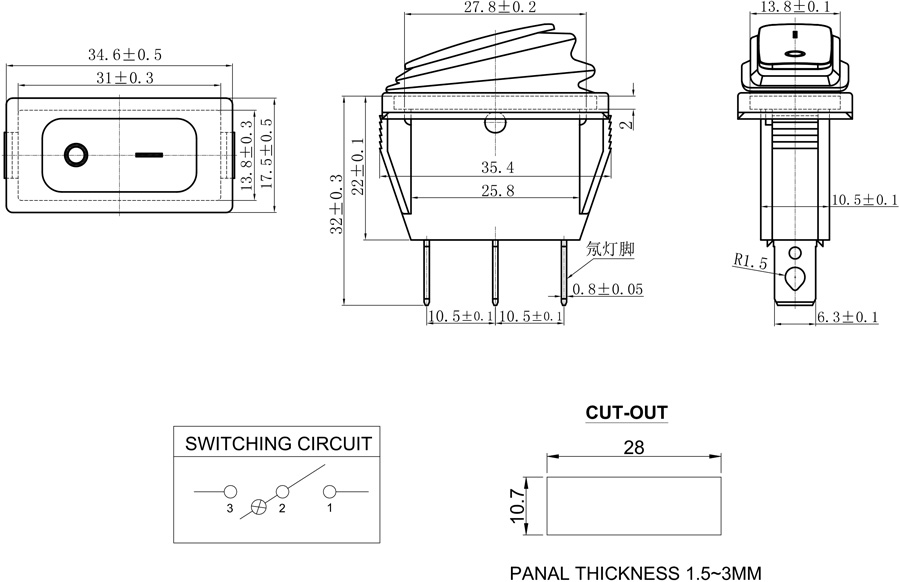

DRAWING
ORDER CODING DIAGRAM
