CLASSIFICATION
PRODUCT MODEL:PBM19-11M-F-RRGU-S0
PBM19-11M-F-RRGU-S0
PRODUCT SPECIFICATION:
Rating:5A 250VAC；2A 36VDC；
Degree of protction:IP67;
Contact Resistance: 50mΩ Max.；
Dielectric Strength:1500VAC For 1 minute；
Total Travel:1.5±0.5mm；
Operating Force:600±200gf；
Mechanical Life:200,000 cycles；
Load Life:50,000 cycles；
Operating Temperation:-20°C~85°C；
Function: OFF-(ON)
Degree of protction:IP67;
Contact Resistance: 50mΩ Max.；
Dielectric Strength:1500VAC For 1 minute；
Total Travel:1.5±0.5mm；
Operating Force:600±200gf；
Mechanical Life:200,000 cycles；
Load Life:50,000 cycles；
Operating Temperation:-20°C~85°C；
Function: OFF-(ON)
Application：
电子门锁系统 Electronic lock system酒店设备 Hotel equipment
通信医疗设备 Communication medical equipment
小家电 Small home appliance
航空航天船舶 Aerospace ship
汽车周边产品 Automobile peripheral products

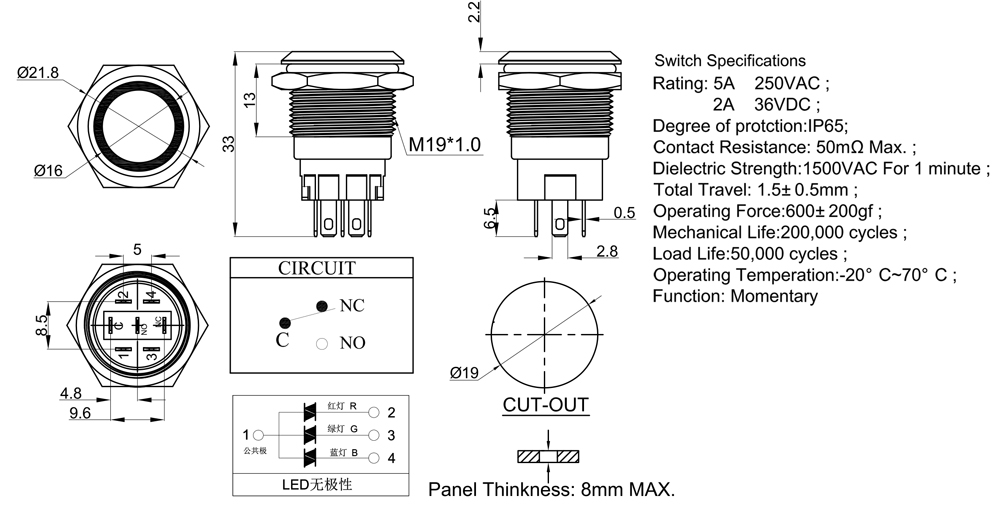

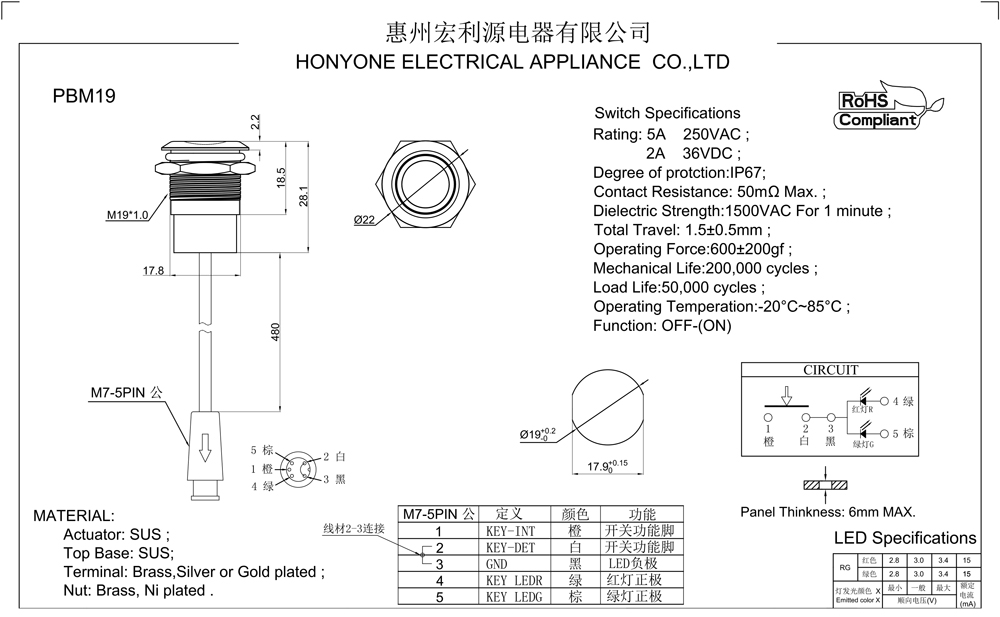

DRAWING
ORDER CODING DIAGRAM
