CLASSIFICATION
PRODUCT MODEL:FNR-13-MR-B-P
FNR-13-MR-B-P
PRODUCT SPECIFICATION:
Rating: 2A 30VDC;
Degree of protction:IP67;
Contact Resistance: 50mΩ Max;
Dielectric Strength:1000VAC For 1 minute；
Operating Force:600±200gf；
Mechanical Life:1,000,000 cycles；
Degree of protction:IP67;
Contact Resistance: 50mΩ Max;
Dielectric Strength:1000VAC For 1 minute；
Operating Force:600±200gf；
Mechanical Life:1,000,000 cycles；
Application：
True ON-ON-ON triple-throw switch options真正的实现ON-ON-ON三档开关功能
Switch contacts sealed to IP68S. With the optional开关防水达IP68S级别。
Tested up to 1 million cycles 开关寿命达100万次
Maintained or momentary action, single or double pole Logic level only
开关可以做到单极与双极逻辑控制
Standard and large rocker style sizes
开关柄可以定制
Mining vehicle 应用于矿用车辆
Large agricultural machinery大型农业机械
Aerial work vehicle 高空作业车辆

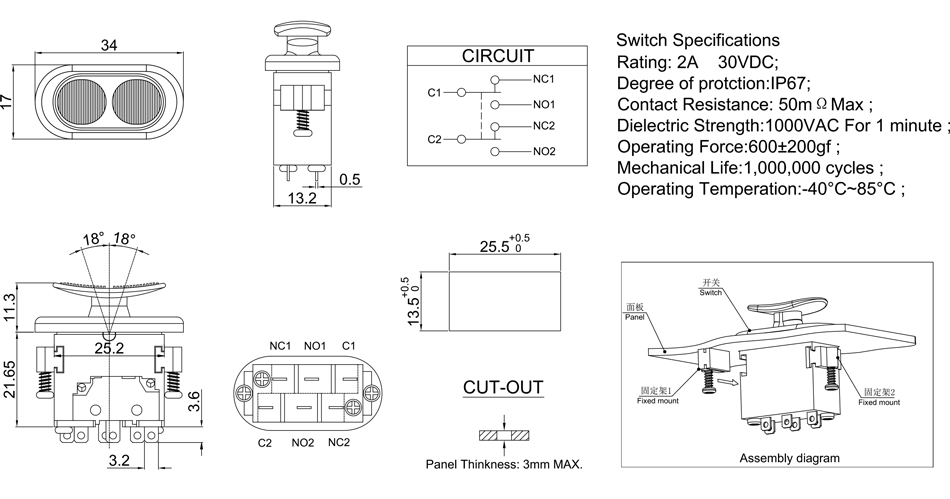

DRAWING
ORDER CODING DIAGRAM
