CLASSIFICATION
PRODUCT MODEL:JBZ-07（20*75 fuse）
JBZ-07（20*75 fuse）
PRODUCT SPECIFICATION:
Rating: 60A：600VAC；
Compatible Wrie Standard: 22mm MAX;
Contact Resistance: 50mΩ Max.；
Dielectric Strength:250oVAC For 1 minute；
Insulation Resistance:
At 500VDC firstly the Resistance>100MΩ
After discharge and charge test:100MΩ
After testing separately:>10MΩ
Fuse: ∅20x75mm
Temperature Rise: 65K MAX
Compatible Wrie Standard: 22mm MAX;
Contact Resistance: 50mΩ Max.；
Dielectric Strength:250oVAC For 1 minute；
Insulation Resistance:
At 500VDC firstly the Resistance>100MΩ
After discharge and charge test:100MΩ
After testing separately:>10MΩ
Fuse: ∅20x75mm
Temperature Rise: 65K MAX
Application：
Circuit overload Protection电路过载保护
Automotive Electronics 汽车电子
Household appliances 家用电器
Beauty Equipment 美容器材
Medical equipment 医疗设备
Instruments and meters 仪器仪表

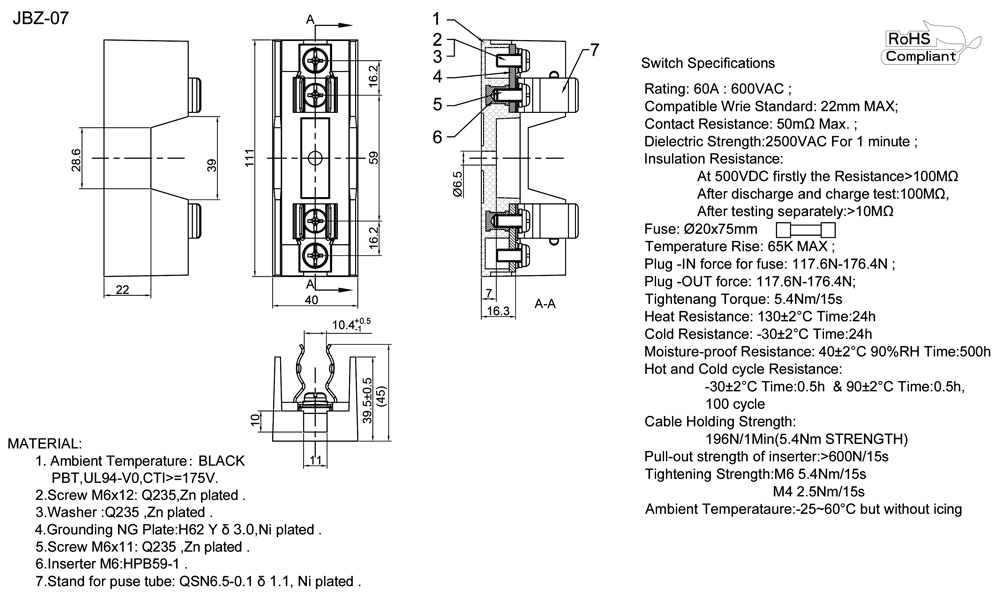

DRAWING
ORDER CODING DIAGRAM
