PRODUCT MODEL:PB06-B-WO-G
PB06-B-WO-G
PRODUCT SPECIFICATION:
Circuit                                      :SPST
Current rating                           :100mA
Voltage rating                           :12VDC
Dielectric withstanding voltage    :250VAC for 1 minute
(between contacts)(between contacts & case)
Contact resistance                     :200mΩ Max.( Initial)
lnsulation resistance                  :100MΩ Min.
Operating force                         :250±100gf
Full travel                                 :4.5mm±0.2mm
Mechanical life                          :over 2,000,oo0 cycles
Electrical life                             :Over 1,000,0o0 cycles
Manual welding                         :350°C for 3 seconds
Operating temperature               :-20°C~+70°C
Function                                   :OFF-(ON)
Application:
Video processor           视频处理器
Security Monitoring Equipment
安防监控设备
Teaching recording and broadcasting equipment
教学录播设备
Consumer Electronics   消费类电子
Audio equipment         音响设备

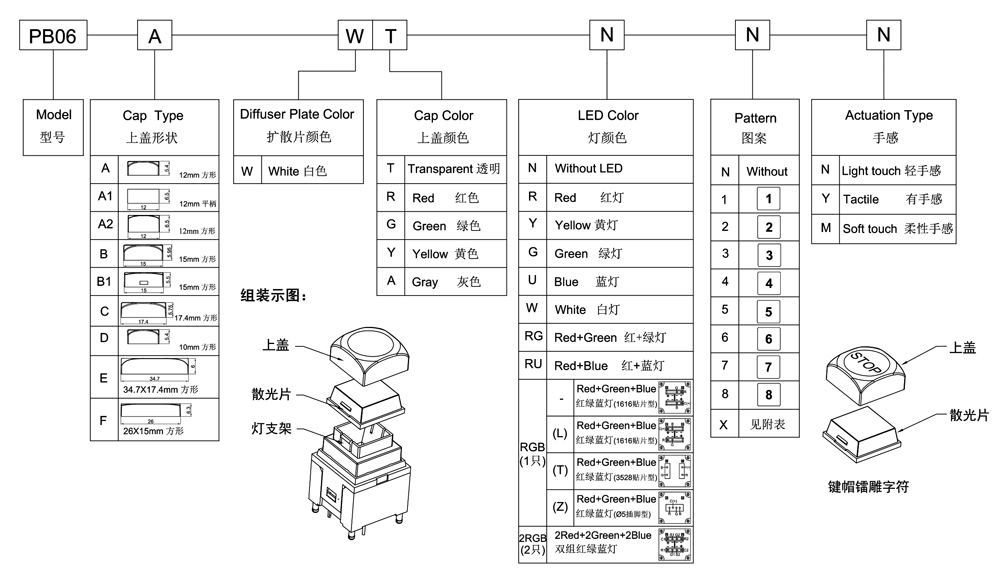

ORDER CODING DIAGRAM
